Doosan

MEGA 500 V

Wheel Loader

Operating Weight
65,698 lb
Bucket Capacity - heaped
6.30 yd³
Gross Power
21,000.3 hp
Net Power
335.0 hp
All wheel loaders

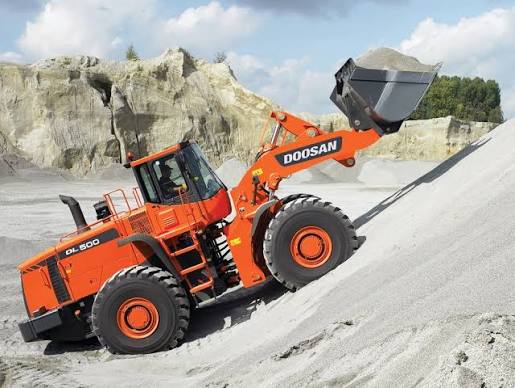

Doosan MEGA 500 V Wheel Loader
1 / 5
Image 1 of 5
Image: powertraininternationalweb.com

Specifications

41 data points

Operating Specifications

Operating Specifications specifications
Operating Weight65,698 lb
Fuel Capacity126.9 gal
Tire Size29.5x25 L3
Hydraulic System Fluid Capacity79.3 gal
Static Tipping Weight50,706 lb
Operating Voltage24 V
Turning Radius289 in
Engine Oil Fluid Capacity9.0 gal
Rear Axle Oscillation20 °
Alternator Supplied Amperage70 A
Front Axle/Diff Fluid Capacity13.3 gal
Rear Axle/Diff Fluid Capacity13.3 gal
Cooling System Fluid Capacity15.9 gal
Transmission Fluid Capacity13.3 gal

Engine

Engine specifications
Engine ModelQSM11
Displacement660 in³
Power Measured @2,100 rpm
Gross Power21,000.3 hp
Net Power335.0 hp
Number of Cylinders6
Aspirationturbocharged

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity140.3 gal/min
Raise Time6.5 s
Lower Time3.5 s
Dump Time1.3 s
Relief Valve Setting2,845 psi
Pump Typevane type

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab150 in
Wheelbase143 in
Length with Bucket on Ground367 in
Hinge Pin - Max Height176 in

Transmission

Transmission specifications
Max Speed - Forward21.8 mph
Max Speed - Reverse16.8 mph
Transmission Typefull auto powershift countershaft
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped6.30 yd³
Dump Clearance at Max Raise122 in
Breakout Force59,525 lb
Bucket Width138 in
