Doosan

SOLAR 175LC-V

Excavator

Max Digging Depth
246 in
Net Power
118.0 hp
All excavators

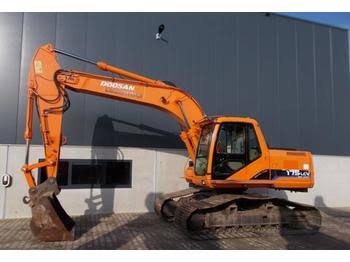

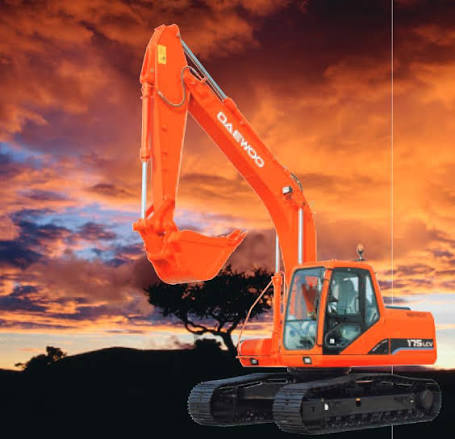

Doosan SOLAR 175LC-V Excavator
1 / 5
Image 1 of 5
Image: deltaheavymachinery.com

Specifications

48 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity74.0 gal
Hydraulic Pump Flow Capacity80.4 gal/min
Hydraulic System Fluid Capacity55.5 gal
Engine Oil Capacity5.1 gal
Cooling System Fluid Capacity5.9 gal
Operating Voltage24 V
Swing Drive Fluid Capacity1.4 gal

Engine

Engine specifications
Engine ModelDB58TIS
Power Measured @1,950 rpm
Gross Power118.1 hp
Net Power118.0 hp
Number of Cylinders6
Aspirationturbocharged air-to-water intercooled
Torque Measured @1,450 rpm
Max Torque333 lb-ft
Engine Make2252

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab117 in
Length of Track on Ground127 in
Tail Swing Radius97 in
Removal Counterweight Clearance42 in

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Number of Track Rollers per Side8
Max Travel Speed3.1 mph
Number of Shoes per Side49
Number of Carrier Rollers per Side2

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Cutting Height337 in
Shipping Length of Unit344 in
Shipping Height of Unit126 in

Bucket

Bucket specifications
Reference Bucket Capacity0.80 yd³
Maximum Bucket Capacity1.29 yd³
Minimum Bucket Capacity0.50 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth246 in
Max Vertical Wall Digging Depth206 in
Max Cutting Height348 in
Max Loading Height240 in
Max Reach Along Ground350 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth265 in
Max Cutting Height354 in
Max Loading Height247 in
Max Vertical Wall Digging Depth226 in
Max Reach Along Ground369 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth245 in
Max Cutting Height379 in
Max Reach Along Ground361 in
Max Loading Height269 in
Max Vertical Wall Dig Depth210 in
