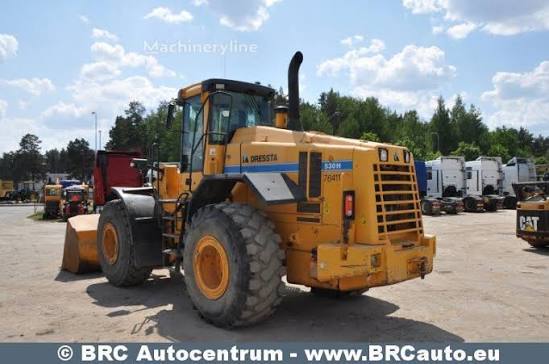

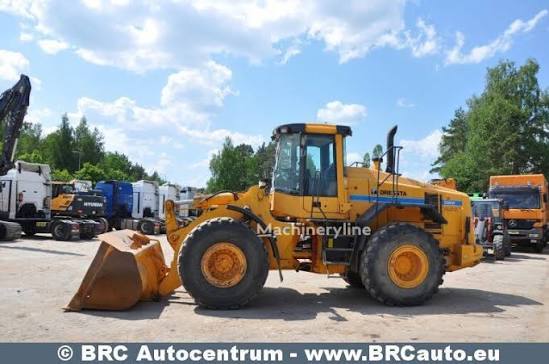

Dressta
530H
- Operating Weight
- 36,376 lb
- Bucket Capacity - heaped
- 3.70 yd³
- Gross Power
- 205.0 hp
- Net Power
- 195.0 hp
1 / 5
Image 1 of 5
Specifications
42 data points
Operating Specifications
| Operating Weight | 36,376 lb |
|---|---|
| Fuel Capacity | 79.3 gal |
| Tire Size | 23.5x2520 PR(L-3) |
| Hydraulic System Fluid Capacity | 43.6 gal |
| Static Tipping Weight | 29,916 lb |
| Operating Voltage | 24 V |
| Turning Radius | 258 in |
| Engine Oil Fluid Capacity | 5.0 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 70 A |
| Cooling System Fluid Capacity | 6.3 gal |
| Transmission Fluid Capacity | 8.2 gal |
Engine
| Engine Model | C 8.3 |
|---|---|
| Displacement | 505 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 205.0 hp |
| Net Power | 195.0 hp |
| Number of Cylinders | 6 |
| Aspiration | 4-cycle diesel turbocharged CAC direct start direct injection |
| Torque Measured @ | 1,500 rpm |
Hydraulic System
| Pump Flow Capacity | 72.0 gal/min |
|---|---|
| Raise Time | 5.9 s |
| Lower Time | 4.0 s |
| Dump Time | 2.5 s |
| Relief Valve Setting | 3,000 psi |
| Pump Type | Three multiple vane cartriges driven from accessory drive. |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 134 in |
| Wheelbase | 131 in |
| Width Over Tires | 84 in |
| Length with Bucket on Ground | 316 in |
| Hinge Pin - Max Height | 145 in |
Transmission
| Max Speed - Forward | 22.4 mph |
|---|---|
| Max Speed - Reverse | 16.4 mph |
| Transmission Type | Full power shift type electrically controlled transmission with automatic gear shifting system |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 3.70 yd³ |
|---|---|
| Bucket Capacity - struck | 3.20 yd³ |
| Dump Clearance at Max Raise | 119 in |
| Breakout Force | 30,247 lb |
| Bucket Width | 119 in |
