Dressta

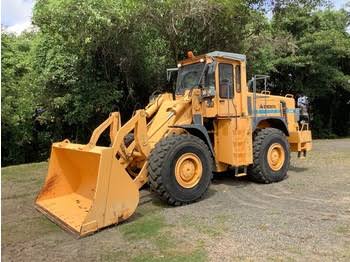

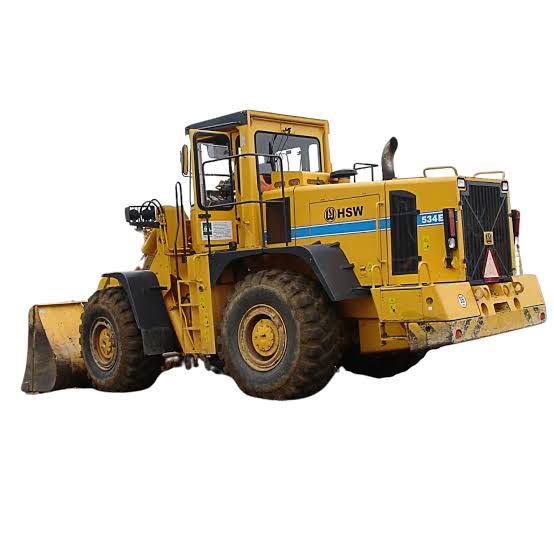

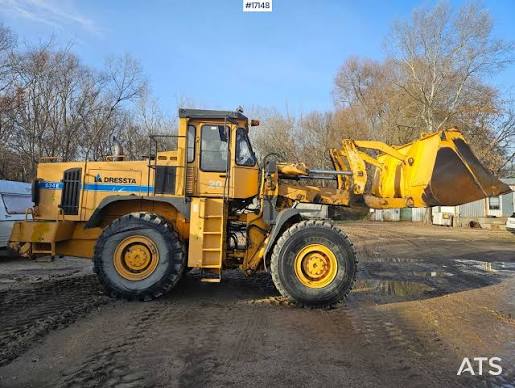

534E
- Operating Weight
- 45,370 lb
- Bucket Capacity - heaped
- 4.50 yd³
- Gross Power
- 240.0 hp
- Net Power
- 227.0 hp
1 / 5
Image 1 of 5
Specifications
40 data points
Operating Specifications
| Operating Weight | 45,370 lb |
|---|---|
| Fuel Capacity | 79.3 gal |

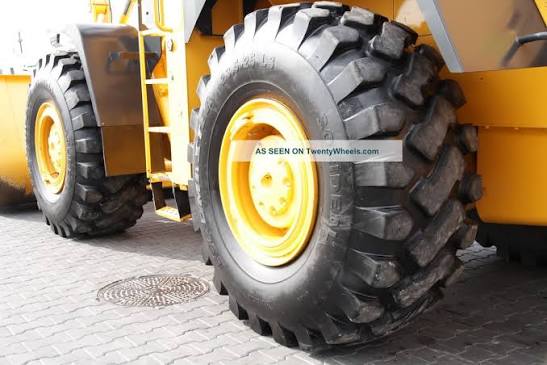

| Tire Size | 23.5x25-20PR(L3) standard |
| Hydraulic System Fluid Capacity | 60.8 gal |
| Static Tipping Weight | 38,933 lb |
| Operating Voltage | 12 V |
| Turning Radius | 246 in |
| Engine Oil Fluid Capacity | 5.0 gal |
| Rear Axle Oscillation | 26 ° |
| Alternator Supplied Amperage | 70 A |
| Cooling System Fluid Capacity | 9.2 gal |
| Transmission Fluid Capacity | 25.0 gal |
Engine
| Engine Model | QSC8.3 |
|---|---|
| Displacement | 505 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 240.0 hp |
| Net Power | 227.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged and CAC |
| Torque Measured @ | 1,500 rpm |
Hydraulic System
| Pump Flow Capacity | 50.0 gal/min |
|---|---|
| Raise Time | 6.0 s |
| Lower Time | 3.5 s |
| Dump Time | 2.0 s |
| Relief Valve Setting | 2,320 psi |
| Pump Type | Gear type driven from torque converter. |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 144 in |
| Width Over Tires | 83 in |
| Length with Bucket on Ground | 320 in |
Transmission
| Max Speed - Forward | 26.3 mph |
|---|---|
| Max Speed - Reverse | 26.3 mph |
| Transmission Type | Countershaft type powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 4.50 yd³ |
|---|---|
| Bucket Capacity - struck | 4.00 yd³ |
| Dump Clearance at Max Raise | 122 in |
| Breakout Force | 31,472 lb |
| Bucket Width | 110 in |
