Dressta
Furukawa

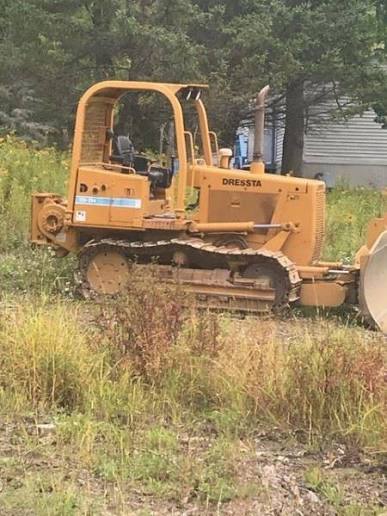

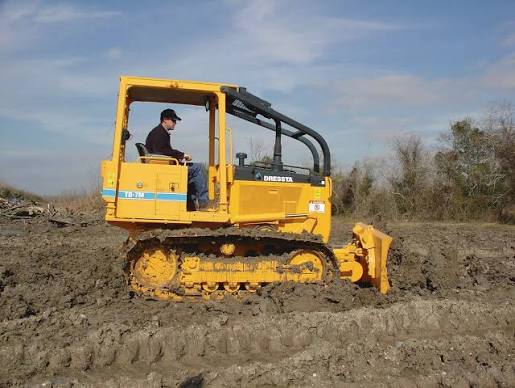

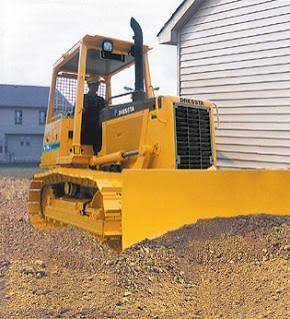

FD40PL
Crawler Dozer
19 specifications
1 / 5
Image 1 of 5
Specifications
36 data points
Operating Specifications
| Operating Weight | 16,200 lb |
|---|---|
| Fuel Capacity | 45.0 gal |
| Cooling System Fluid Capacity | 6.6 gal |
| Final Drives Fluid Capacity | 2.5 gal |
| Hydraulic Fluid Capacity | 18.5 gal |
| Operating Voltage | 12 V |
Engine
| Engine Model | B4.5 |
|---|---|
| Displacement | 275 in³ |
| Power Measured @ | 2,500 rpm |
| Gross Power | 80.0 hp |
| Net Power | 74.0 hp |
| Number of Cylinders | 4 |
| Aspiration | 4-cycle diesel naturally aspirated direct start direct injection |
| Torque Measured @ | 1,300 rpm |
| Make | Cummins |
Hydraulic System
| Pump Flow Capacity | 19.9 gal/min |
|---|---|
| Relief Valve Pressure | 2,250 psi |
| Pump Type | Pump tandem gear |
Dimensions
| Ground Clearance | 13 in |
|---|---|
| Height - Top of Cab | 106 in |
| Length w/ Blade | 161 in |
Transmission
| Max Speed - Forward | 5.7 mph |
|---|---|
| Max Speed - Reverse | 6.7 mph |
| Transmission Type | Modular countershaft type full power shift electro-hydraulically actuated with 3 speeds forward 3 reverse |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Undercarriage
| Ground Pressure | 8 psi |
|---|---|
| Number of Track Rollers per Side | 5 |
| Number of Shoes per Side | 34 |
| Standard Shoe Size | 15 in |
| Ground Contact Area | 2,160 in³ |
| Track Pitch | 7 in |
Standard Blade
| Width | 103 in |
|---|---|
| Height | 3 in |
| Capacity | 1.90 yd³ |
| Blade Angle (both directions) | 25 ° |
