Dynapac

CA500PD

Padfoot Compactor

Operating Weight
34,172 lb
Max Speed
6.9 mph
Drum Width
84 in
Gross Power
173.0 hp
All padfoot compactors

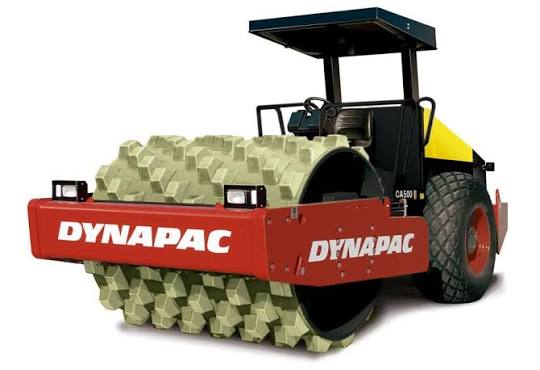

Dynapac CA500PD Padfoot Compactor
1 / 5
Image 1 of 5
Image: dynapac.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight34,172 lb
Max Speed6.9 mph
Fuel Capacity84.6 gal

Engine

Engine specifications
Engine ModelBT 6A 5.9-C
Power Measured @2,200 rpm
Gross Power173.0 hp
Aspirationwater cooled turbo diesel with after cooler

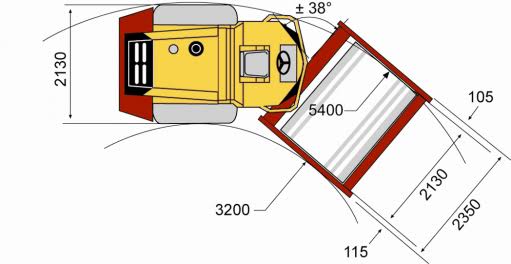

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab119 in
Width Over Tires84 in
Overall Length w/o Blade236 in

Tires & Wheels

Tires & Wheels specifications
Tires23.1x26

Drum

Drum specifications
Drum Width84 in
Vibration Frequency 129 vpm
Centrifugal Force - High67,443 lb
Drum Diameter61 in
Nominal Amplitude - High0 in
Pad Height4 in
Number of Pads130
Centrifugal Force - Low53,505 lb
Nominal Amplitude - Low0 in
Vibratory Frequency 233 vpm
Pad Surface Area23 in³
