Dynapac

CA6000D

Smooth Drum Roller

Operating Weight
43,652 lb
All smooth drum rollers

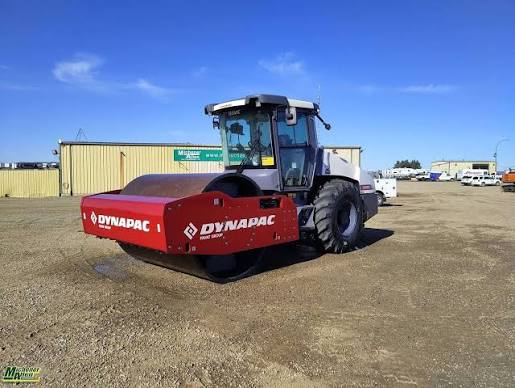

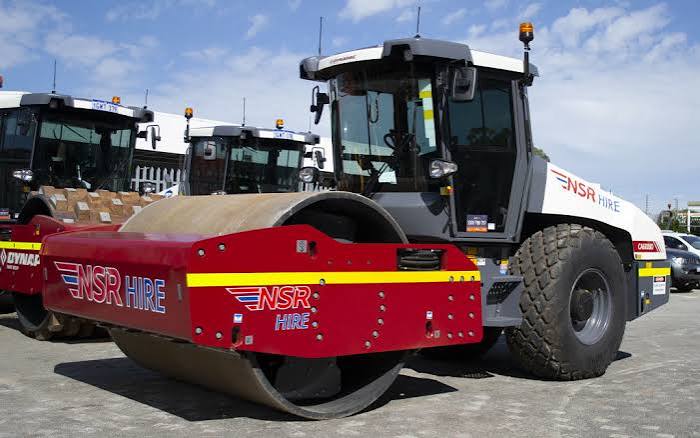

Dynapac CA6000D Smooth Drum Roller
1 / 5
Image 1 of 5
Image: dynapac.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight43,652 lb
Operating weight ROPS42,549 lb
Operating weight Cabin42,990 lb
Fuel Capacity71.9 gal
Operating Width92 in
Tire Size231 x 26 AW

Engine

Engine specifications
Power Measured @2,200 rpm
Engine MakeDeutz
MakeDeutz TCD6 1L6 T4i

Dimensions

Dimensions specifications
Ground Clearance18 in
Wheelbase122 in
Height - Top of ROPS/FOPS114 in
Gradeability56.0 %
Height84 in
Turning Radius - Outside229 in
Curb clearance18 in
Overhang Rear5 in
Overhang Front5 in

Tires & Wheels

Tires & Wheels specifications
Tires231 x 26 AW

General Specifications

General Specifications specifications
Engine typeCummins QSB 4.5 (T4f) — Starting 2019 Model Year
DRUM WIDTH IN. (CM)84 (213) — Starting 2019 Model Year
INSIDE TURN RADIUS IN. (CM)132 (335) — Starting 2019 Model Year
WIDTH IN. (CM)92 (233) — Starting 2019 Model Year
FREQUENCY HZ1,740/1,800 vpm — Starting 2019 Model Year

Drum

Drum specifications
Drum Diameter61 in
Vibration Frequency 129 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High80,931 lb
Vibration Frequency 230 vpm
Vibration Frequency29 – 30 vpm
Centrifugal Force - Low33,721 lb
Nominal Amplitude - Low0 in
Vibratory Frequency 230 vpm

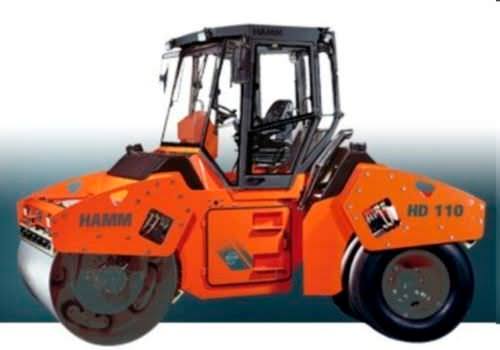

Comparable machines
