Hamm

HD 110K

Smooth Drum Roller

Operating Weight
26,213 lb
All smooth drum rollers

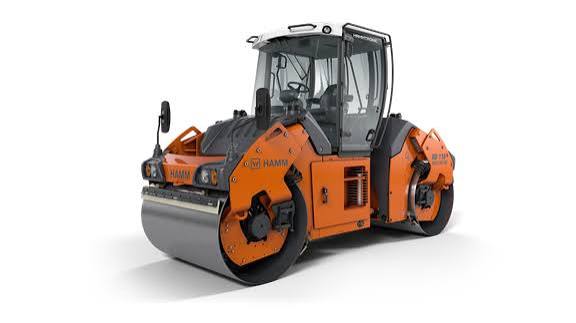

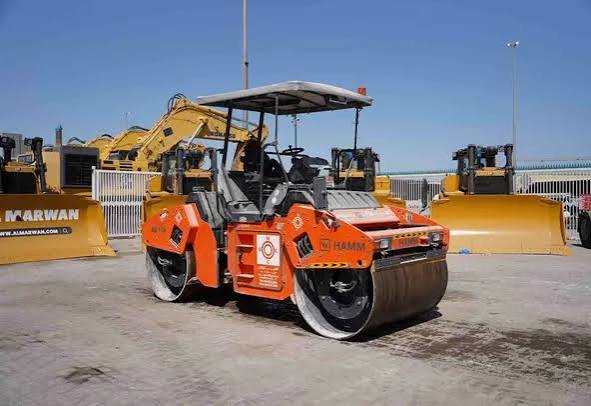

Hamm HD 110K Smooth Drum Roller
1 / 5
Image 1 of 5
Image: directindustry.com

Specifications

36 data points

Operating Specifications

Operating Specifications specifications
Operating Weight26,213 lb
Operating weight ROPS19,765 lb
Operating weight Cabin20,547 lb
Operating Width66 in
Water Spray Tank Fluid Capacity237.8 gal
Oscillating angle10 °
Water Spray System Fluid Capacity237.8 gal

Engine

Engine specifications
Power Measured @2,300 rpm
Net Power134.2 hp
Number of Cylinders4
Engine MakeDEUTZ
MakeDeutz
Emissions CertificationEPA Tier 3

Weights

Weights specifications
Operating Weight - standard20,503 lb

Dimensions

Dimensions specifications
Ground Clearance31 in
Height - Top of Cab121 in
Wheelbase134 in
Overall Width72 in
Height - Top of ROPS/FOPS119 in
Maximum width68,898 in

Tires & Wheels

Tires & Wheels specifications
Size of tyres, rear11.00-20
Width over tyres, rear64 in
Number of tyres, rear4

Drum

Drum specifications
Drum Diameter47 in
Vibration Frequency 142 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High26,977 lb
Vibration Frequency 250 vpm
Static Linear Load15 lb-ft
Vibration Frequency2,520 – 3,000 vpm
Centrifugal Force - Low22,256 lb
Nominal Amplitude - Low0 in
Drum thickness1 in
Drum TypeSmooth/non-divided

Speeds

Speeds specifications
Speed - working gear4.6 mph
Speed - transportation gear9.2 mph
