Ingersoll Rand

SD-70D

Smooth Drum Roller

Operating Weight
15,750 lb
Max Speed
9.0 mph
Drum Width
66 in
All smooth drum rollers

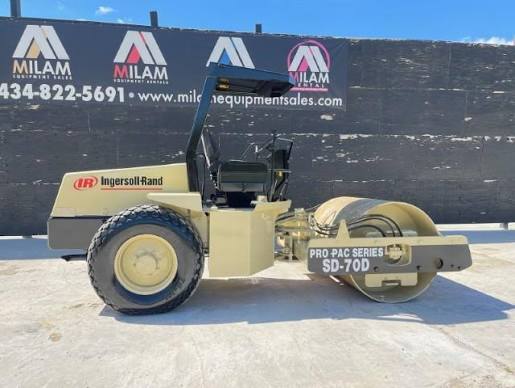

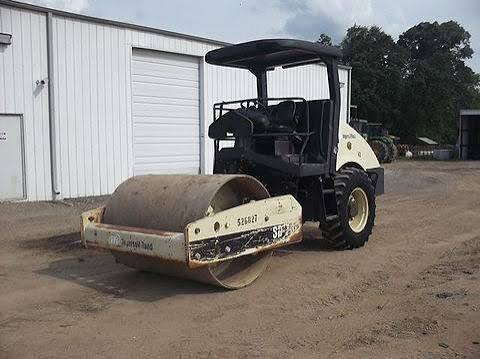

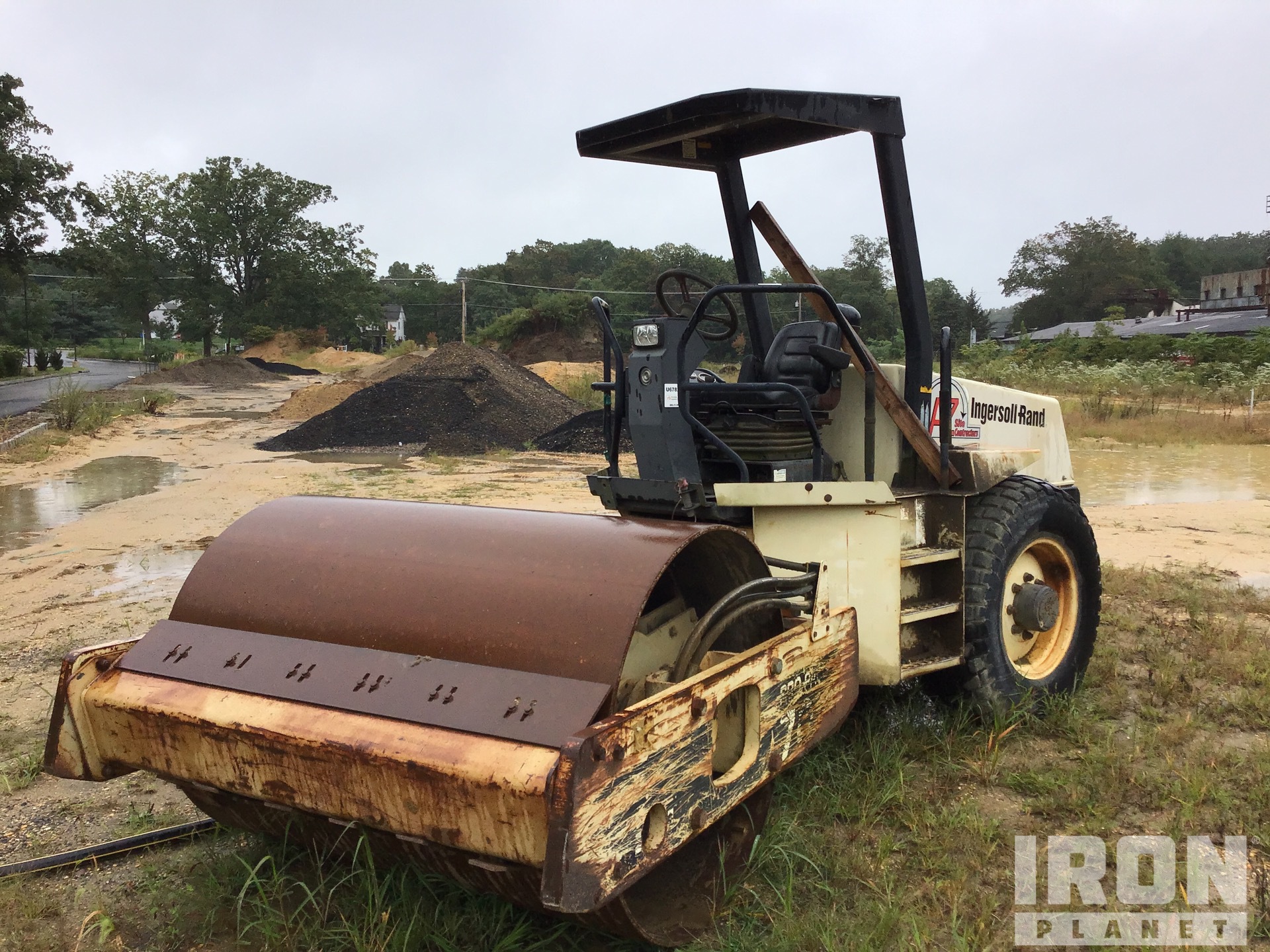

Ingersoll Rand SD-70D Smooth Drum Roller
1 / 5
Image 1 of 5
Image: ironplanet.com

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Operating Weight15,750 lb
Max Speed9.0 mph
Fuel Capacity47.0 gal
Operating Voltage12 V
Hydraulic System Fluid Capacity22.0 gal
Alternator Supplied Amperage105 A

Engine

Engine specifications
Engine ModelB4.5T Tier 2
Net Power99.0 hp
Aspirationturbocharged
MakeCummins

Dimensions

Dimensions specifications
Height - Top of Cab115 in
Wheelbase9 in
Overall Length17 in
Overall Width73 in
Turning Radius - Inside128 in

Tires & Wheels

Tires & Wheels specifications
Tires14.9x24 6PR R3

Drum

Drum specifications
Drum Width66 in
Drum Diameter48 in
Vibration Frequency 134 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High32,148 lb
Vibration Frequency 231 vpm
Centrifugal Force - Low23,380 lb
Nominal Amplitude - Low0 in
