Dynapac
JCB
VMT480K

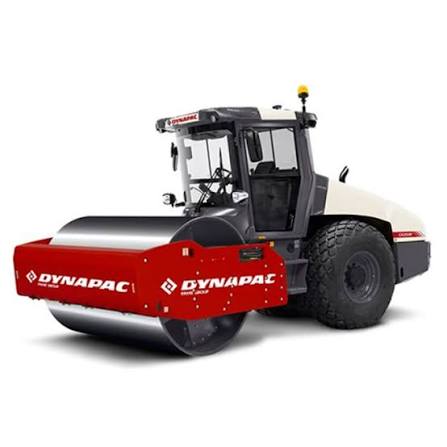

Smooth Drum Roller
28 specifications
1 / 5
Image 1 of 5
Specifications
20 data points
Operating Specifications
| Operating Weight | 15,829 lb |
|---|---|
| Max Speed | 6.9 mph |
Engine
| Engine Model | BF4L |
|---|---|
| Power Measured @ | 2,800 rpm |
| Gross Power | 80.5 hp |
Dimensions
| Ground Clearance | 11 in |
|---|---|
| Height - Top of Cab | 115 in |
| Wheelbase | 11 in |
| Overall Length | 14 in |
| Overall Width | 55 in |
| Drum Diameter - Front | 44 in |
Drum
| Drum Width | 57 in |
|---|---|
| Drum Diameter | 44 in |
| Vibration Frequency 1 | 54 vpm |
| Nominal Amplitude - High | 0 in |
| Centrifugal Force - High | 17,535 lb |
| Vibration Frequency 2 | 71 vpm |
| Static Linear Load | 14 lb-ft |
| Centrifugal Force - Low | 9,892 lb |
| Nominal Amplitude - Low | 0 in |
