JCB

VMT390K

Smooth Drum Roller

Operating Weight
9,535 lb
Max Speed
6.8 mph
Drum Width
51 in
Gross Power
46.6 hp
All smooth drum rollers

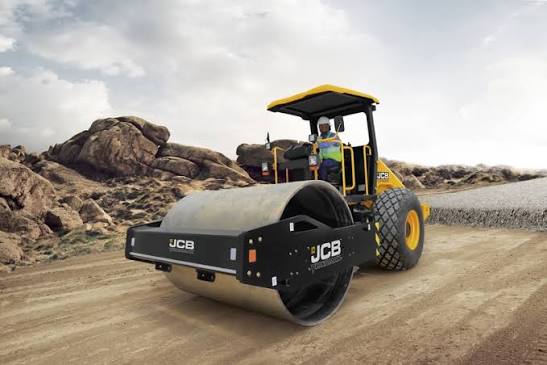

JCB VMT390K Smooth Drum Roller
1 / 5
Image 1 of 5
Image: machinerytrader.com

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Operating Weight9,535 lb
Max Speed6.8 mph
Fuel Capacity20.0 gal
Operating Voltage12 V
Hydraulic System Fluid Capacity13.2 gal
Engine Oil Capacity2.6 gal
Alternator Supplied Amperage45 A

Engine

Engine specifications
Engine ModelV2203
Displacement134 in³
Power Measured @2,800 rpm
Gross Power46.6 hp
Number of Cylinders4
AspirationWater cooled

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab101 in
Wheelbase8 in
Overall Length9 in
Overall Width50 in
Drum Diameter - Front32 in

Tires & Wheels

Tires & Wheels specifications
Tires4- 8.25 R15 Smooth

Drum

Drum specifications
Drum Width51 in
Drum Diameter32 in
Vibration Frequency 155 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High1,079 lb
Static Linear Load6 lb-ft
