Dynapac

CC1000

Smooth Drum Roller

Operating Weight
3,858 lb
Max Speed
5.6 mph
Gross Power
24.2 hp
All smooth drum rollers

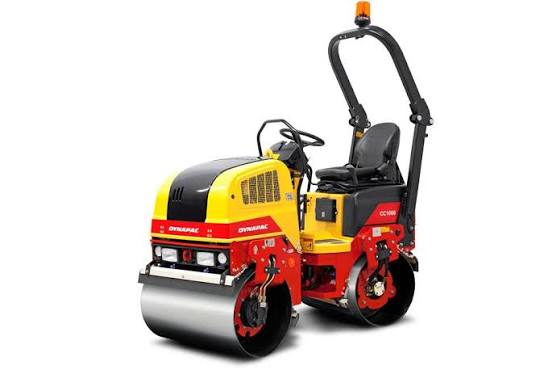

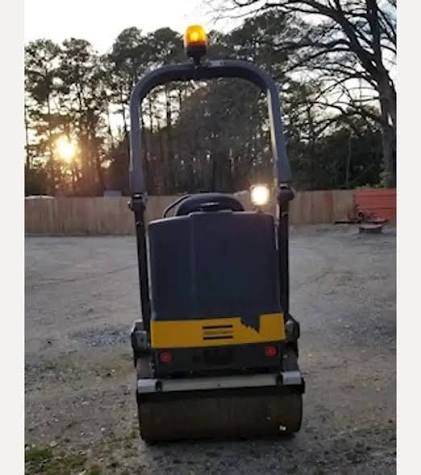

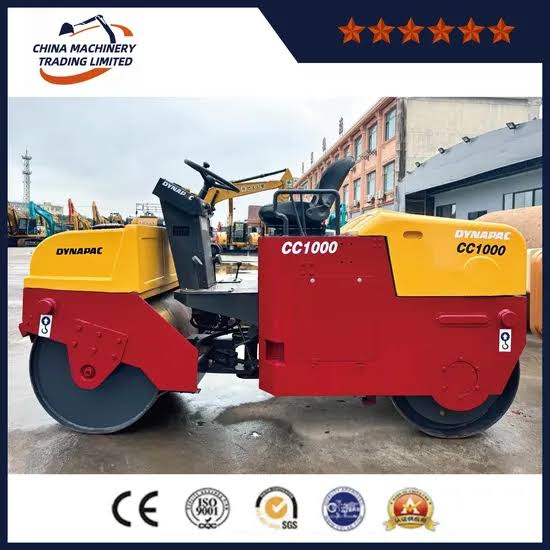

Dynapac CC1000 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: dynapac.com

Specifications

35 data points

Operating Specifications

Operating Specifications specifications
Operating Weight3,858 lb
Max Speed5.6 mph
Fuel Capacity6.1 gal
Operating Width42 in

Engine

Engine specifications
Engine ModelD1105-E4B T4f
Power Measured @2,800 rpm
Gross Power24.2 hp
Engine MakeKubota
MakePerkins

Dimensions

Dimensions specifications
Ground Clearance10 in
Height - Top of Cab100 in
Wheelbase53 in
Overall Length80 in
Gradeability40.0 %
Height64 in
Turning Radius - Outside109 in
Curb clearance18 in
Overhang Rear2 in
Overhang Front2 in

Tires & Wheels

Tires & Wheels specifications
Tires26.5 x 25 28PR(l-4)

General Specifications

General Specifications specifications
Engine typeKubota -D1105 (T4f) — Starting 2019 Model Year
DRUM WIDTH IN. (CM)39 () — Starting 2023 Model Year
INSIDE TURN RADIUS IN. (CM)68 (173) — Starting 2024 Model Year
WIDTH IN. (CM)42 (106) — Starting 2019 Model Year
FREQUENCY HZ4,200 vpm — Starting 2019 Model Year
FREQUENCY VPM (HZ)4200(70) — Starting 2024 Model Year

Drum

Drum specifications
Drum Diameter23 in
Vibration Frequency 170 vpm
Nominal Amplitude - High0 in
Static Linear Load4 lb-ft
Vibration Frequency70 vpm
Drum thickness1 in
Frequency70 vpm
Nominal Amplitude - Med0 in
Centrifugal Force - MEd3,822 lb
