Dynapac

CC125

Smooth Drum Roller

Operating Weight
3,200 lb
Max Speed
7.5 mph
Drum Width
47 in
Gross Power
39.0 hp
All smooth drum rollers

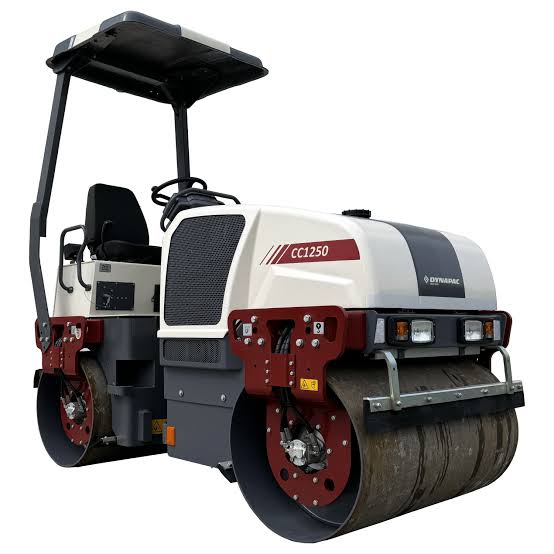

Dynapac CC125 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: indiamart.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Operating Weight3,200 lb
Operating weight ROPS3,100 lb
Max Speed7.5 mph
Fuel Capacity13.3 gal
Water Spray Tank Fluid Capacity42.3 gal
Oscillating angle10 °
Steering Angle29 °

Engine

Engine specifications
Engine Model275DI
Power Measured @2,600 rpm
Gross Power39.0 hp
Aspirationwatercooled
Engine MakeMahindra

Dimensions

Dimensions specifications
Ground Clearance7 in
Height - Top of Cab104 in
Wheelbase71 in
Overall Length98 in
Overall Width50 in
Turning Radius - Inside115 in
Turning Radius - Outside162 in
Overhang Rear2 in
Overhang Front2 in

Brakes & Steering

Brakes & Steering specifications
Service brakeHydrostatic in forward and reverse lever
Parking brakeFailsafe multidisc brake

Drum

Drum specifications
Drum Width47 in
Drum Diameter27 in
Vibration Frequency 158 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High6,070 lb
Static Linear Load6 lb-ft
Drum thickness1 in
