Dynapac

CC1250

Smooth Drum Roller

Operating Weight
6,834 lb
Drum Width
47 in
Gross Power
35.0 hp
All smooth drum rollers

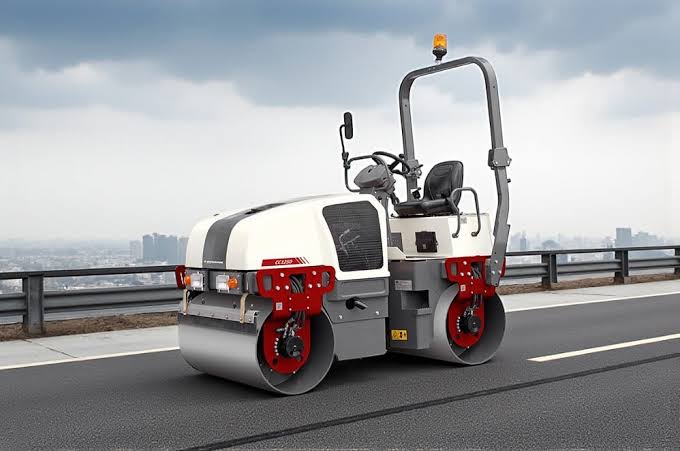

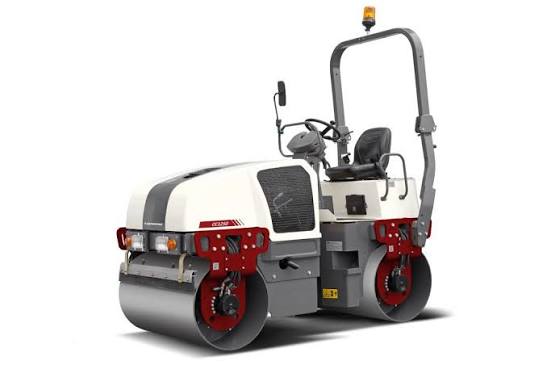

Dynapac CC1250 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: alshirawitrading.com

Specifications

27 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,834 lb
Operating weight ROPS6,614 lb
Fuel Capacity13.3 gal
Water Spray Tank Fluid Capacity42.3 gal
Oscillating angle10 °
Steering Angle29 °

Engine

Engine specifications
Engine ModelD1703-M
Power Measured @2,800 rpm
Gross Power35.0 hp
Engine MakeKubota

Dimensions

Dimensions specifications
Ground Clearance7 in
Wheelbase71 in
Overall Length98 in
Overall Width50 in
Turning Radius - Inside115 in
Gradeability38.0 %
Turning Radius - Outside162 in
Curb clearance23 in
Overhang Rear2 in
Overhang Front2 in

Drum

Drum specifications
Drum Width47 in
Drum Diameter27 in
Vibration Frequency 158 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High6,070 lb
Static Linear Load6 lb-ft
Drum thickness1 in
