Dynapac

CC1300C

Combination Roller

All combination rollers

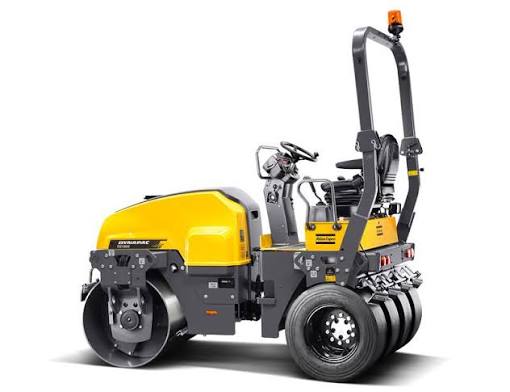

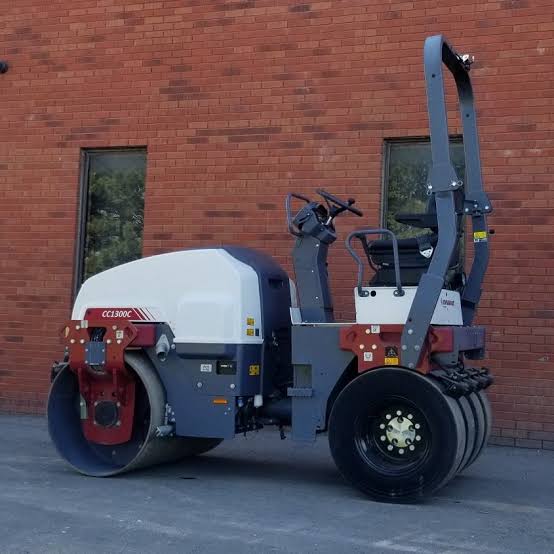

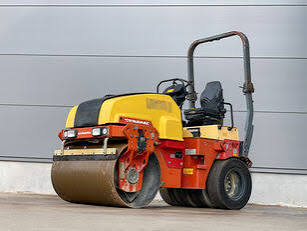

Dynapac CC1300C Combination Roller
1 / 5
Image 1 of 5
Image: dynapaccea.com.au

Specifications

42 data points

Operating Specifications

Operating Specifications specifications
Operating Weight8,600 lb
Operating weight ROPS8,300 lb
Max Speed6.3 mph
Fuel Capacity13.0 gal
Engine Oil Capacity10.6 gal
Operating Width57 in
Water Spray System Fluid Capacity53.0 gal
Steering Angle30 °

Engine

Engine specifications
Engine ModelV2203-M
Power Measured @2,600 rpm
Gross Power45.0 hp
Engine MakeKubota
MakeKubota
Engine TypeWater cooled
Emissions CertificationTier 4i

Dimensions

Dimensions specifications
Ground Clearance10 in
Height - Top of Cab108 in
Wheelbase76 in
Overall Length107 in
Overall Width50 in
Gradeability37.0 %
Turning Radius - Outside168 in
Curb clearance24 in
Overhang Front2 in
Overhang Rear2 in

Brakes & Steering

Brakes & Steering specifications
Service brakeHydrostatic in forward and reverse lever
Parking brakeFailsafe multidisc brake on drum and wheels

Tires & Wheels

Tires & Wheels specifications
Wheel Track/Tire Overlap5 in
Track widths9 in

General Specifications

General Specifications specifications
Engine typeKubota- V2203 (T4f) — Starting 2019 Model Year
DRUM WIDTH IN. (CM)51 (129) — Starting 2019 Model Year
FREQUENCY HZ3180 — Starting 2019 Model Year
INSIDE TURN RADIUS IN. (CM)116 (294) — Starting 2019 Model Year
WIDTH IN. (CM)57 (144) — Starting 2019 Model Year

Drum

Drum specifications
Drum Width51 in
Static Linear Load7 lb-ft
Vibration Frequency 153 vpm
Drum Diameter32 in
Centrifugal Force - High8,100 lb
Nominal Amplitude - High0 in
Vibration Frequency3,120 vpm
Drum thickness1 in
