Dynapac

CC142C

Combination Roller

All combination rollers

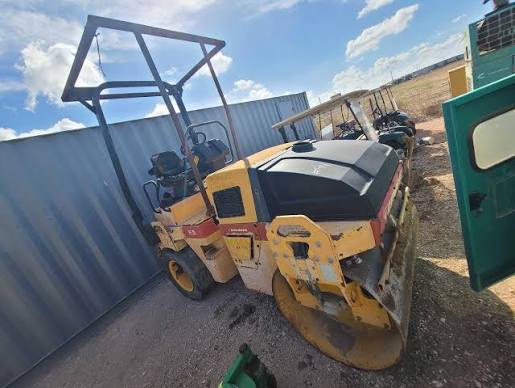

Dynapac CC142C Combination Roller
1 / 5
Image 1 of 5
Image: dynapac.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Operating Weight8,267 lb
Max Speed6.3 mph
Fuel Capacity13.3 gal

Engine

Engine specifications
Engine ModelD2011 L03 I
Power Measured @2,600 rpm
Gross Power45.6 hp
MakeDeutz

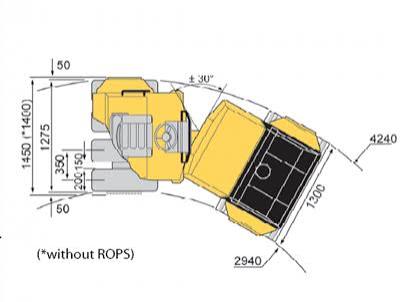

Dimensions

Dimensions specifications
Ground Clearance10 in
Height - Top of Cab109 in
Wheelbase6 in
Overall Length9 in
Overall Width50 in
Turning Radius - Inside9 in
Drum Diameter - Front32 in

Drum

Drum specifications
Drum Width51 in
Static Linear Load20 lb-ft
Vibration Frequency 152 vpm
Drum Diameter32 in
Frequency52 vpm
Centrifugal Force - MEd7,419 lb
Nominal Amplitude - Med0 in
