Dynapac

CC800

Smooth Drum Roller

Operating Weight
3,700 lb
Max Speed
6.0 mph
Drum Width
31 in
Gross Power
23.5 hp
All smooth drum rollers

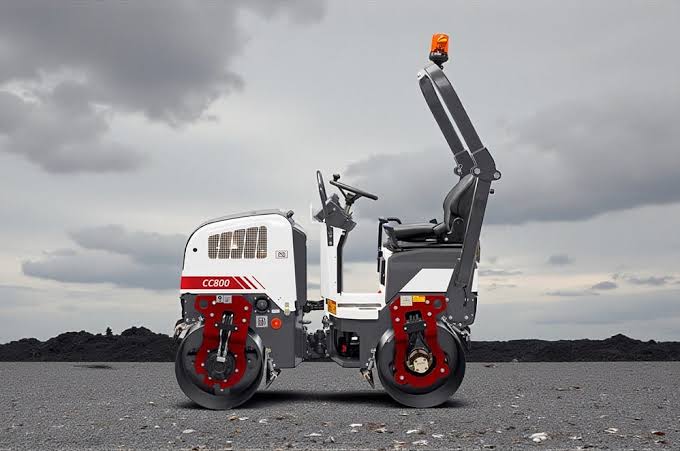

Dynapac CC800 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: dynapac.com

Specifications

35 data points

Operating Specifications

Operating Specifications specifications
Operating Weight3,700 lb
Operating weight ROPS3,400 lb
Max Speed6.0 mph
Fuel Capacity6.1 gal
Operating Width34 in
Water Spray Tank Fluid Capacity30.0 gal

Engine

Engine specifications
Engine Model403D-11
Power Measured @2,600 rpm
Gross Power23.5 hp
Aspirationwatercooled
Engine MakePerkins 2351
MakePerkins 403D-11

Dimensions

Dimensions specifications
Ground Clearance10 in
Height - Top of Cab91 in
Wheelbase53 in
Overall Length80 in
Overall Width35 in
Turning Radius - Inside61 in
Gradeability40.0 %
Curb clearance18 in
Overhang Rear1 in
Overhang Front1 in

General Specifications

General Specifications specifications
Engine typeKubota -D1105 (T4f) — Starting 2019 Model Year
DRUM WIDTH IN. (CM)31 (78) — Starting 2019 Model Year
INSIDE TURN RADIUS IN. (CM)68.5 (174) — Starting 2024 Model Year
WIDTH IN. (CM)34 (86) — Starting 2019 Model Year
FREQUENCY HZ4,200 vpm — Starting 2019 Model Year
FREQUENCY VPM (HZ)4,200 (70) — Starting 2024 Model Year

Drum

Drum specifications
Drum Width31 in
Drum Diameter23 in
Vibration Frequency 170 vpm
Static Linear Load4 lb-ft
Vibration Frequency70 vpm
Nominal Amplitude - Med0 in
Centrifugal Force - MEd3,800 lb
