Dynapac

CC900

Smooth Drum Roller

Operating Weight
3,671 lb
Max Speed
5.6 mph
Gross Power
24.2 hp
All smooth drum rollers

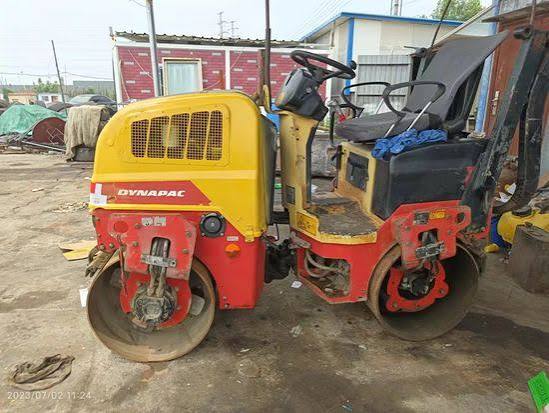

Dynapac CC900 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: dynapac.com

Specifications

34 data points

Operating Specifications

Operating Specifications specifications
Operating Weight3,671 lb
Operating weight ROPS3,527 lb
Max Speed5.6 mph
Fuel Capacity6.1 gal
Operating Width38 in
Water Spray Tank Fluid Capacity29.1 gal

Engine

Engine specifications
Engine ModelD1105-E4B
Power Measured @2,800 rpm
Gross Power24.2 hp
Aspirationwatercooled
Engine MakeKubota 2351
MakePerkins 403D-11

Dimensions

Dimensions specifications
Ground Clearance10 in
Height - Top of Cab80 in
Wheelbase5 in
Overall Length7 in
Overall Width39 in
Turning Radius - Inside65 in
Turning Radius - Outside111 in
Overhang Rear2 in
Overhang Front2 in

General Specifications

General Specifications specifications
Engine typeKubota -D1105 (T4f) — Starting 2019 Model Year
DRUM WIDTH IN. (CM)35 (88) — Starting 2019 Model Year
INSIDE TURN RADIUS IN. (CM)68 (173) — Starting 2024 Model Year
WIDTH IN. (CM)38 (96) — Starting 2019 Model Year
FREQUENCY HZ4,200 vpm — Starting 2019 Model Year
FREQUENCY VPM (HZ)4,200 (70) — Starting 2024 Model Year

Drum

Drum specifications
Drum Diameter23 in
Vibration Frequency 170 vpm
Static Linear Load4 lb-ft
Vibration Frequency70 vpm
Drum thickness1 in
Nominal Amplitude - Med0 in
Centrifugal Force - MEd3,822 lb
