Dynapac

CC900 PLUS

Smooth Drum Roller

Operating Weight
3,700 lb
Max Speed
6.0 mph
Drum Width
35 in
Gross Power
24.2 hp
All smooth drum rollers

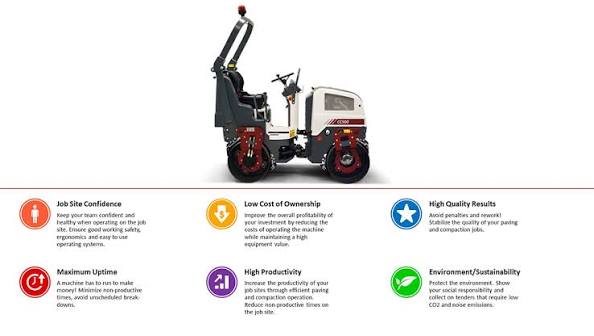

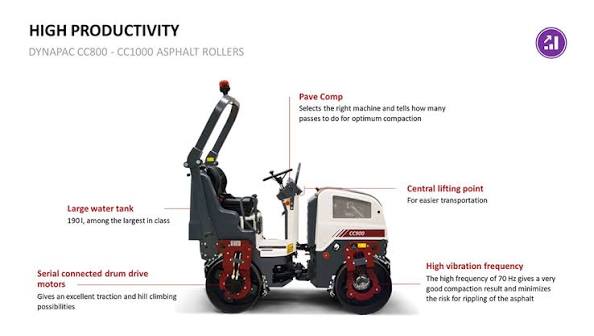

Dynapac CC900 PLUS Smooth Drum Roller
1 / 5
Image 1 of 5
Image: dynapac.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight3,700 lb
Operating weight ROPS3,500 lb
Max Speed6.0 mph
Fuel Capacity6.0 gal
Oscillating angle13 °
Steering Angle34 °
Water Spray System Fluid Capacity50.2 gal

Engine

Engine specifications
Engine ModelD1105-E4B
Power Measured @2,800 rpm
Gross Power24.2 hp
Engine MakeKubota
Engine TypeWater cooled diesel
Emissions CertificationTier 4f

Dimensions

Dimensions specifications
Ground Clearance10 in
Height - Top of Cab91 in
Wheelbase53 in
Overall Length80 in
Gradeability40.0 %
Turning Radius - Outside108 in
Curb clearance18 in
Overhang Front1 in
Overhang Rear1 in

Brakes & Steering

Brakes & Steering specifications
Service brakeHydrostatic in forward and reverse lever
Parking brakeFailsafe brake in both drums

Drum

Drum specifications
Drum Width35 in
Drum Diameter23 in
Vibration Frequency 170 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High3,800 lb
Static Linear Load4 lb-ft
Drum thickness1 in
