Dynapac

CC950

Smooth Drum Roller

Operating Weight
3,100 lb
Max Speed
5.0 mph
Drum Width
35 in
Gross Power
20.3 hp
All smooth drum rollers

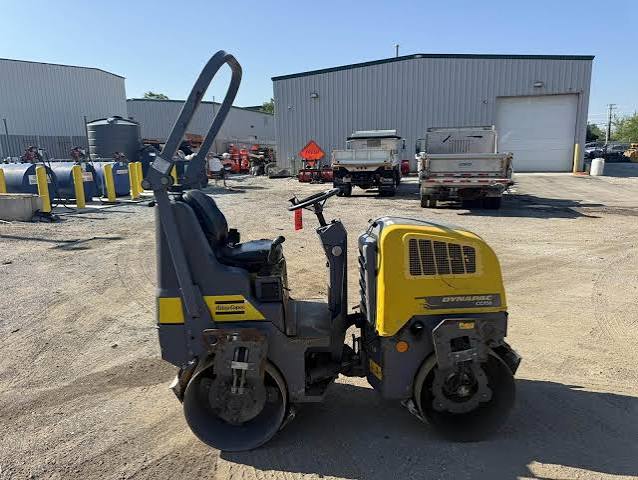

Dynapac CC950 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: starequip.com

Specifications

35 data points

Operating Specifications

Operating Specifications specifications
Operating Weight3,100 lb
Operating weight ROPS3,000 lb
Max Speed5.0 mph
Fuel Capacity6.0 gal
Water Spray Tank Fluid Capacity50.0 gal
Oscillating angle13 °
Steering Angle34 °

Engine

Engine specifications
Engine ModelD722-E4B
Power Measured @3,600 rpm
Gross Power20.3 hp
Aspirationwatercooled
Engine MakeKubota

Dimensions

Dimensions specifications
Ground Clearance10 in
Height - Top of Cab91 in
Wheelbase53 in
Overall Length83 in
Overall Width39 in
Turning Radius - Outside108 in
Overhang Front1 in
Overhang Rear1 in

Brakes & Steering

Brakes & Steering specifications
Service brakeHydrostatic in forward and reverse lever
Parking brakeFailsafe brake in both drums

General Specifications

General Specifications specifications
Engine typeKubota -D722 (T4f) — Starting 2019 Model Year
DRUM WIDTH IN. (CM)35 (88) — Starting 2019 Model Year
INSIDE TURN RADIUS IN. (CM)72 (183) — Starting 2024 Model Year
WIDTH IN. (CM)38 (96) — Starting 2019 Model Year
FREQUENCY HZ4,200 vpm — Starting 2019 Model Year
FREQUENCY VPM (HZ)4,200 (70) — Starting 2024 Model Year

Drum

Drum specifications
Drum Width35 in
Drum Diameter23 in
Vibration Frequency 170 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High3,800 lb
Static Linear Load3 lb-ft
Drum thickness0 in
