Dynapac

CP271

Pneumatic Roller

Max Speed
14.3 mph
Gross Power
99.3 hp
Overall Length
17 in
Overall Width
94 in
All pneumatic rollers

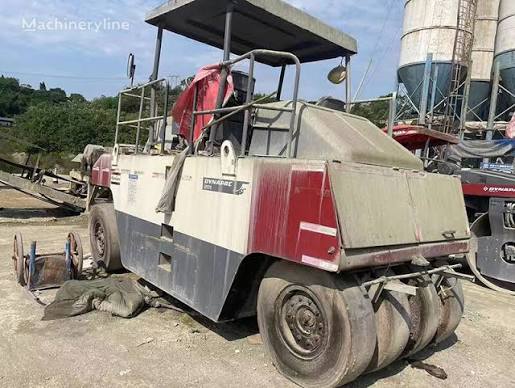

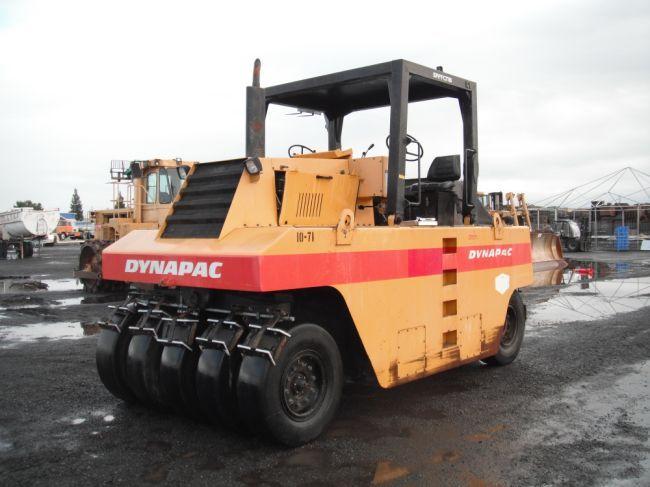

Dynapac CP271 Pneumatic Roller
1 / 5
Image 1 of 5
Image: liveauctionworld.com

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Max Speed14.3 mph
Fuel Capacity31.8 gal
Water Spray Tank Fluid Capacity109.7 gal
Operating Width93 in
Operating Voltage12 V

Engine

Engine specifications
Engine ModelB4.5T
Gross Power99.3 hp
AspirationTurbocharged
MakeCummins

Weights

Weights specifications
Operating Weight - standard27,337 lb
Operating Weight - max ballast59,525 lb
Average Weight per Wheel - Max Ballast6,614 lb
Average Weight per Wheel - Standard3,020 lb

Dimensions

Dimensions specifications
Ground Clearance12 in
Wheelbase159 in
Overall Length17 in
Overall Width94 in
Height - Top of ROPS/FOPS137 in
Turning Radius - Inside253 in

Tires & Wheels

Tires & Wheels specifications
Number of Tires - Front5
Number of Tires - Rear4
Wheel Track/Tire Overlap2 in
Standard Tire Size13.80 R20 radial

Drum

Drum specifications
Drum Width93 in
