DynapacDynapac
F5CS
Asphalt Paver
17 specifications
1 / 5
Image 1 of 5
Specifications
25 data points
Operating Specifications
| Operating Weight | 12,800 lb |
|---|---|
| Fuel Capacity | 22.0 gal |
Engine
| Engine Model | TD2.9 L4 |
|---|---|
| Power Measured @ | 2,200 rpm |
| Gross Power | 66.0 hp |
| Engine Make | Deutz |
| Make | Deutz |

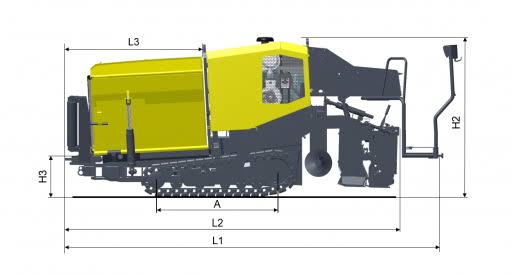

Dimensions
| Wheelbase | 55 in |
|---|---|
| Overall Length | 172 in |
| Transport Height | 76 in |
| Track Width | 8 in |
| Height | 75 in |
| Length w/ Screed | 48 in |
| Working Width- Maximum, | 122 in |
| Working Width- Minimum | 12 in |
Undercarriage
| Crawler Width | 8 in |
|---|---|
| Crawler length | 55 in |
Hopper/Paver
| Paving Width - max | 111 in |
|---|---|
| Paving Speed - max | 1.0 mph |
| Hopper Capacity | 11,000 lb |
| Travel Speed - max | 2.1 mph |
| Auger Diameter | 13 in |
| Paving Thickness - max | 8 in |
| Hopper Length | 52 in |
| Conveyor Width | 26 in |
