DynapacDynapac
F1200C
Asphalt Paver
25 specifications
Dynapac
F5CS
- Operating Weight w/ Screed
- 11,905 lb
- Paving Width - max
- 122 in
- Gross Power
- 52.3 hp
- Length w/ Screed
- 168 in
1 / 5

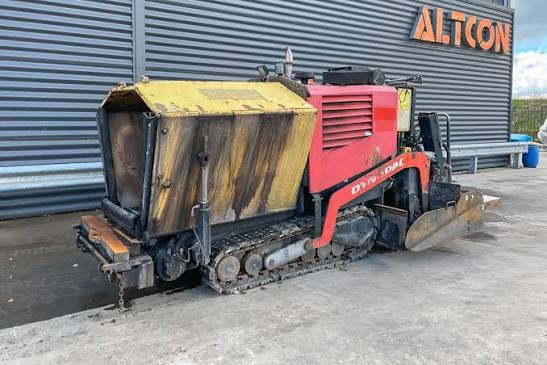

Image 1 of 5
Specifications
17 data points
Operating Specifications
| Operating Weight w/ Screed | 11,905 lb |
|---|---|
| Operating Voltage | 24 V |
Engine
| Engine Model | BF3L 2011 |
|---|---|
| Power Measured @ | 2,300 rpm |
| Gross Power | 52.3 hp |
Dimensions
| Length of Track on Ground | 55 in |
|---|---|
| Transport Width | 48 in |
| Transport Height | 74 in |
| Track Width | 8 in |
| Length w/ Screed | 168 in |
| Width w/ Hopper Open | 113 in |
Hopper/Paver
| Paving Width - max | 122 in |
|---|---|
| Paving Speed - max | 0.6 mph |
| Hopper Capacity | 3 lb |
| Travel Speed - max | 1.9 mph |
| Auger Diameter | 14 in |
| Paving Thickness - max | 8 in |
