Dynapac
Caterpillar
BG230
Asphalt Paver
19 specifications
Dynapac
F182CS
- Operating Weight w/ Screed
- 44,754 lb
- Paving Width - max
- 512 in
- Gross Power
- 234.0 hp
- Length w/ Screed
- 277 in
1 / 5
Image 1 of 5
Specifications
16 data points
Operating Specifications
| Operating Weight w/ Screed | 44,754 lb |
|---|---|
| Operating Voltage | 24 V |
Engine
| Engine Model | QSB6.7-C220 |
|---|---|
| Power Measured @ | 1,800 rpm |
| Gross Power | 234.0 hp |

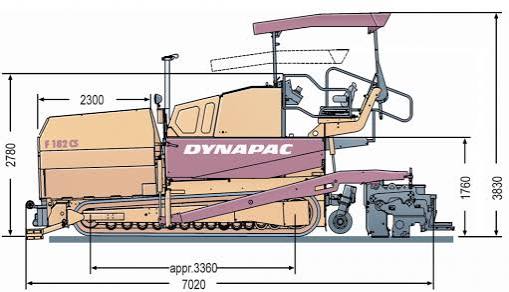

Dimensions
| Length of Track on Ground | 133 in |
|---|---|
| Transport Width | 101 in |
| Transport Height | 143 in |
| Length w/ Screed | 277 in |
| Width w/ Hopper Open | 135 in |
Hopper/Paver
| Paving Width - max | 512 in |
|---|---|
| Paving Speed - max | 0.7 mph |
| Hopper Capacity | 10 lb |
| Travel Speed - max | 2.4 mph |
| Auger Diameter | 17 in |
| Paving Thickness - max | 14 in |
