Fendt

817

Tractor

Operating Weight
14,661 lb
Displacement
348 in³
Power Measured @
2,100 rpm
Gross Power
177.1 hp
All tractors

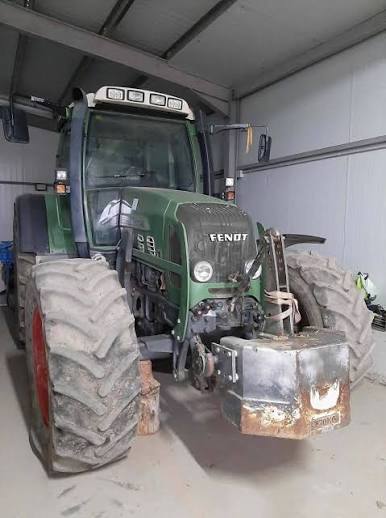

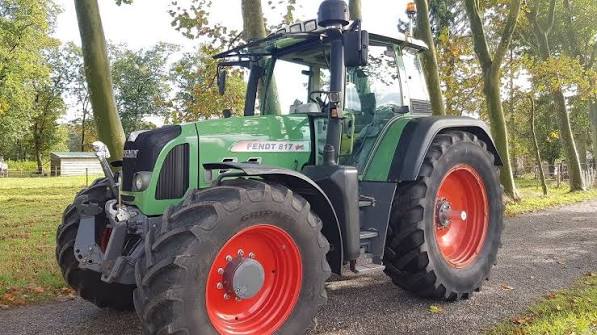

Fendt 817 Tractor
1 / 5
Image 1 of 5
Image: agroline.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight14,661 lb
Fuel Capacity89.9 gal
Turning Radius221 in
Alternator Supplied Amperage150 A
Operating Voltage12 V
Hydraulic System Fluid Capacity11.9 gal

Engine

Engine specifications
Displacement348 in³
Power Measured @2,100 rpm
Gross Power177.1 hp
Net Power162.3 hp
Number of Cylinders6
AspirationTurbocharger and intercooler
Torque Rise37.0 %

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity29.1 gal/min
Relief Valve Pressure2,901 psi

Dimensions

Dimensions specifications
Ground Clearance23 in
Height - Top of Cab120 in
Wheelbase108 in
Overall Length16 in
Tire SizeFront 480/70R30 Rear 580/70R42
Width Outside Frame101 in

Transmission

Transmission specifications
Max Speed31.1 mph
Transmission Typestepless Vario transmission
