Gehl

4640 Turbo

Skid Steer Loader

Operating Weight
6,200 lb
Max Speed
8.1 mph
Gross Power
60.0 hp
All skid steer loaders

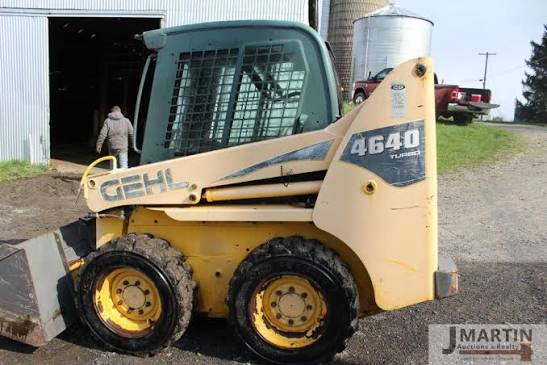

Gehl 4640 Turbo Skid Steer Loader
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,200 lb
Max Speed8.1 mph
Fuel Capacity14.8 gal
Hydraulic System Fluid Capacity11.9 gal
Tire Size10.00x16.5 HD
Operating Voltage12 V
Alternator Supplied Amperage95 A

Engine

Engine specifications
Engine ModelBF3M2011
Displacement142 in³
Gross Power60.0 hp
Aspirationturbocharged

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity19.0 gal/min

Dimensions

Dimensions specifications
Ground Clearance8 in
Height - Top of Cab78 in
Wheelbase39 in
Width Over Tires64 in
Reach at Max Lift and Dump28 in
Length with Bucket124 in
Clearance at Max Lift and Dump90 in
Turning Radius from Center - inc bucket37 in
Turning Radius from Center - machine rear30 in
Length w/o Bucket91 in

Loader

Loader specifications
Operating Load Rating1,500 lb
Tipping Angle3,000 °
