Gehl

4840

Skid Steer Loader

Operating Weight
6,480 lb
Max Speed
8.1 mph
Gross Power
60.0 hp
All skid steer loaders

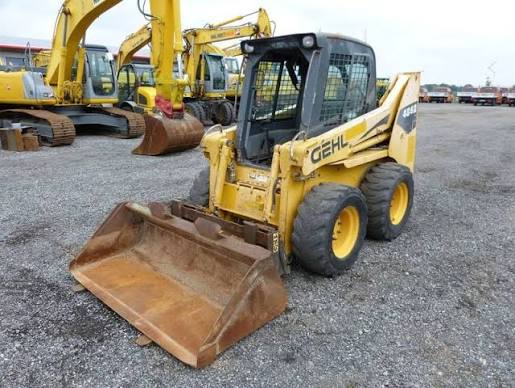

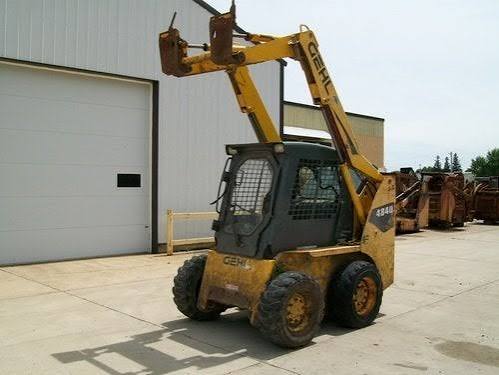

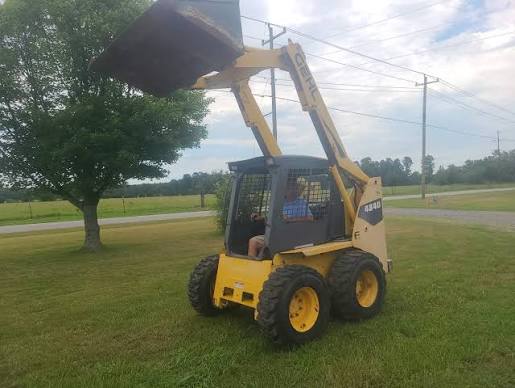

Gehl 4840 Skid Steer Loader
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,480 lb
Max Speed8.1 mph
Fuel Capacity14.8 gal
Hydraulic System Fluid Capacity11.9 gal
Tire Size10.00x16.5 HD
Operating Voltage12 V
Alternator Supplied Amperage95 A

Engine

Engine specifications
Engine ModelF4M2011
Displacement190 in³
Power Measured @2,500 rpm
Gross Power60.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity19.0 gal/min

Dimensions

Dimensions specifications
Ground Clearance8 in
Height - Top of Cab78 in
Wheelbase42 in
Width Over Tires64 in
Reach at Max Lift and Dump28 in
Length with Bucket127 in
Clearance at Max Lift and Dump90 in
Turning Radius from Center - inc bucket38 in
Turning Radius from Center - machine rear31 in
Length w/o Bucket94 in

Loader

Loader specifications
Operating Load Rating1,700 lb
Tipping Angle3,400 °
