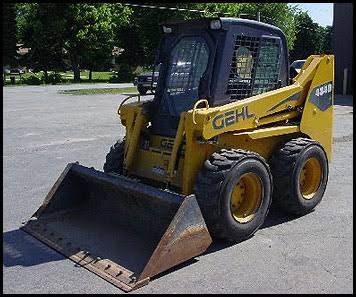

Gehl
Case
440
Skid Steer Loader
32 specifications
1 / 5
Image 1 of 5
Specifications
23 data points
Operating Specifications
| Operating Weight | 6,200 lb |
|---|---|
| Max Speed | 8.9 mph |
| Fuel Capacity | 15.0 gal |
| Hydraulic System Fluid Capacity | 11.9 gal |
| Tire Size | 10.00x16.5 HD |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 95 A |
Engine
| Engine Model | F4M2011 |
|---|---|
| Displacement | 190 in³ |
| Power Measured @ | 2,500 rpm |
| Gross Power | 60.0 hp |
Hydraulic System
| Pump Flow Capacity | 19.0 gal/min |
|---|
Dimensions
| Ground Clearance | 8 in |
|---|---|
| Height - Top of Cab | 78 in |
| Wheelbase | 42 in |
| Width Over Tires | 64 in |
| Reach at Max Lift and Dump | 28 in |
| Length with Bucket | 127 in |
| Clearance at Max Lift and Dump | 90 in |
| Turning Radius from Center - inc bucket | 38 in |
| Turning Radius from Center - machine rear | 31 in |
Loader
| Operating Load Rating | 1,900 lb |
|---|---|
| Tipping Angle | 3,800 ° |
