Gehl

5640

Skid Steer Loader

Operating Weight
7,380 lb
Max Speed
8.4 mph
Gross Power
60.0 hp
All skid steer loaders

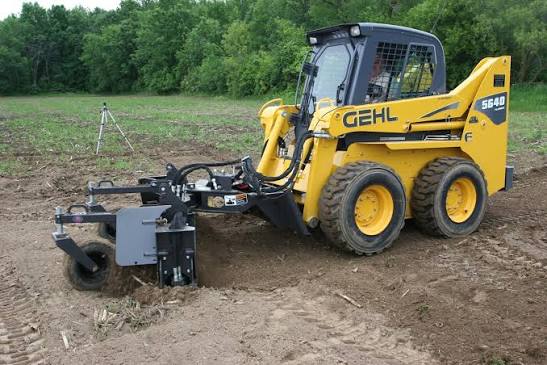

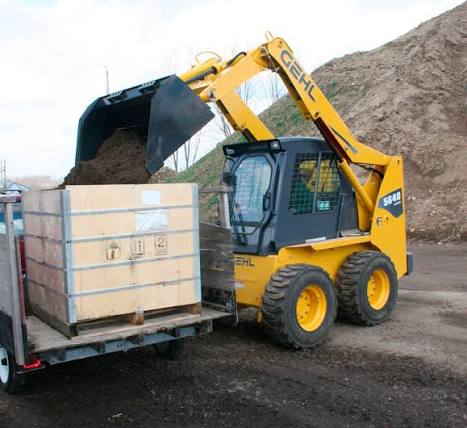

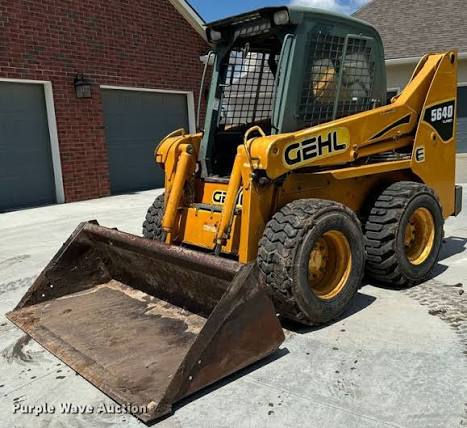

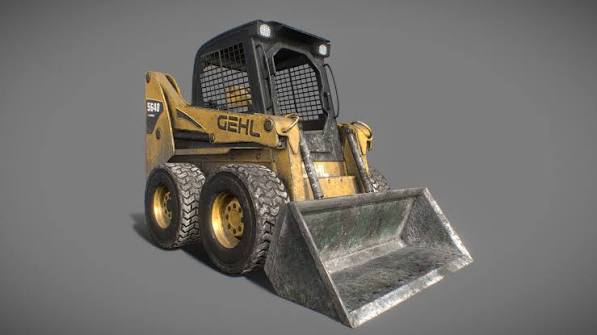

Gehl 5640 Skid Steer Loader
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,380 lb
Max Speed8.4 mph
Fuel Capacity19.1 gal
Hydraulic System Fluid Capacity15.9 gal
Tire Size12.00x16.5 HD
Operating Voltage12 V
Alternator Supplied Amperage95 A

Engine

Engine specifications
Engine ModelF4M2011
Displacement190 in³
Power Measured @2,500 rpm
Gross Power60.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity23.0 gal/min

Dimensions

Dimensions specifications
Ground Clearance8 in
Height - Top of Cab81 in
Wheelbase43 in
Width Over Tires67 in
Reach at Max Lift and Dump33 in
Length with Bucket132 in
Clearance at Max Lift and Dump94 in
Turning Radius from Center - inc bucket41 in
Turning Radius from Center - machine rear33 in
Length w/o Bucket96 in

Loader

Loader specifications
Operating Load Rating2,000 lb
Tipping Angle4,000 °
