Gehl

603

Mini Excavator

Operating Weight
12,566 lb
Max Digging Depth
152 in
Gross Power
69.0 hp
Net Power
57.0 hp
All mini excavators

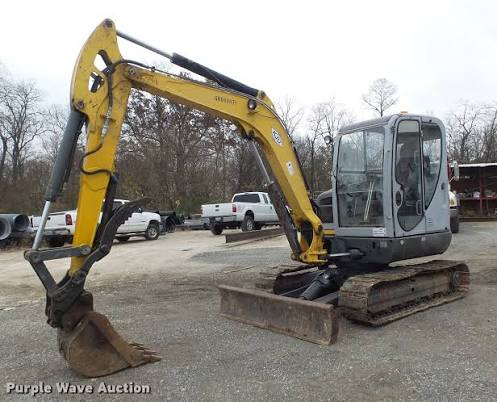

Gehl 603 Mini Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

35 data points

Operating Specifications

Operating Specifications specifications
Operating Weight12,566 lb
Fuel Capacity22.0 gal
Hydraulic Pump Flow Capacity49.2 gal/min
Hydraulic System Fluid Capacity21.2 gal
Hydraulic System Relief Valve Pressure3,553 psi
Operating Voltage12 V
Alternator Supplied Amperage88 A

Engine

Engine specifications
Engine ModelYanmar 4TNV98-VNS A TIER II
Displacement202 in³
Power Measured @2,100 rpm
Gross Power69.0 hp
Net Power57.0 hp
Number of Cylinders4

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab102 in
Tail Swing Radius40 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Number of Track Rollers per Side5
Max Travel Speed3.0 mph
Shoe Size16 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth152 in
Max Reach Along Ground238 in
Max Vertical Wall Digging Depth113 in
Max Loading Height148 in
Shipping Length of Unit229 in
Max Cutting Height223 in

Bucket

Bucket specifications
Reference Bucket Capacity0.20 yd³
Maximum Bucket Capacity0.41 yd³
Minimum Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth163 in
Max Cutting Height230 in
Max Loading Height158 in
Max Vertical Wall Digging Depth124 in
Max Reach Along Ground245 in
