Gehl

6640

Skid Steer Loader

Operating Weight
7,800 lb
Max Speed
8.4 mph
Gross Power
82.0 hp
All skid steer loaders

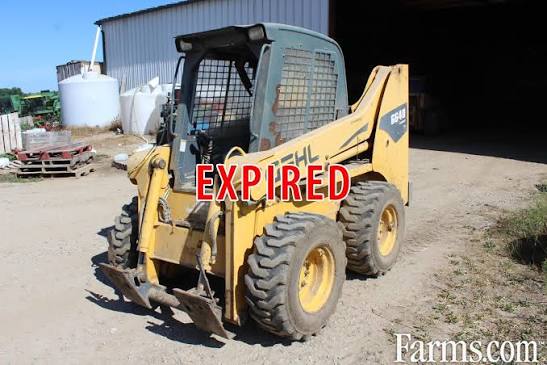

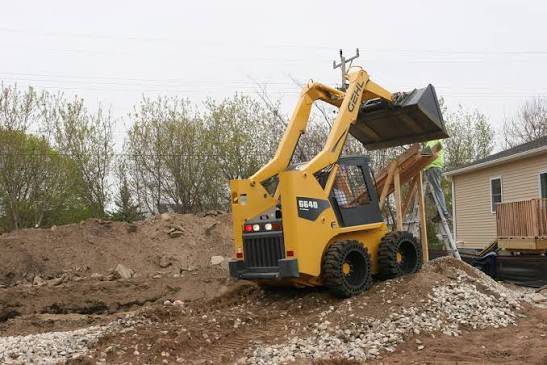

Gehl 6640 Skid Steer Loader
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,800 lb
Max Speed8.4 mph
Fuel Capacity24.1 gal
Hydraulic System Fluid Capacity15.9 gal
Tire Size14.00x17.5 HD
Operating Voltage12 V
Alternator Supplied Amperage95 A

Engine

Engine specifications
Engine ModelBF4M2011
Displacement190 in³
Power Measured @2,500 rpm
Gross Power82.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity23.0 gal/min

Dimensions

Dimensions specifications
Ground Clearance9 in
Height - Top of Cab83 in
Wheelbase48 in
Width Over Tires73 in
Reach at Max Lift and Dump34 in
Length with Bucket142 in
Clearance at Max Lift and Dump96 in
Turning Radius from Center - inc bucket45 in
Turning Radius from Center - machine rear35 in
Length w/o Bucket102 in

Loader

Loader specifications
Operating Load Rating2,400 lb
Tipping Angle4,800 °
