Gehl

6640E

Skid Steer Loader

Operating Weight
7,800 lb
Bucket Capacity
0.80 yd³
Max Speed
14.0 mph
All skid steer loaders

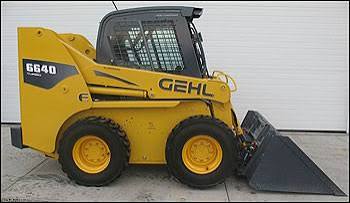

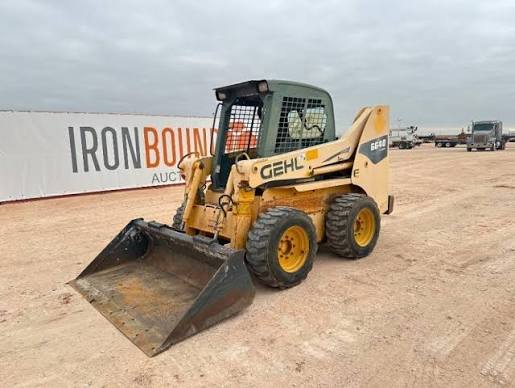

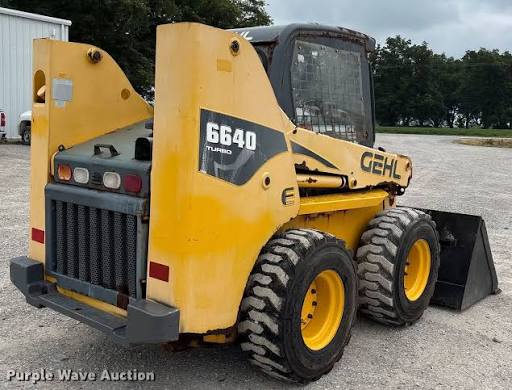

Gehl 6640E Skid Steer Loader
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,800 lb
Max Speed14.0 mph
Fuel Capacity24.1 gal
Hydraulic System Fluid Capacity23.0 gal
Tire Size14.00x17.5 HD
Operating Voltage12 V
Alternator Supplied Amperage95 A

Engine

Engine specifications
Engine ModelBF4M2011
Displacement190 in³
Power Measured @2,500 rpm
Number of Cylinders4

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity23.0 gal/min

Dimensions

Dimensions specifications
Ground Clearance9 in
Height - Top of Cab83 in
Wheelbase48 in
Width Over Tires73 in
Reach at Max Lift and Dump34 in
Length with Bucket142 in
Clearance at Max Lift and Dump96 in
Turning Radius from Center - inc bucket45 in
Turning Radius from Center - machine rear35 in
Length w/o Bucket102 in

Loader

Loader specifications
Bucket Capacity0.80 yd³
Tipping Angle5,200 °
Operating Width73 in
