Genie

GS-2668 DC

Aerial Lift

Max Platform Height
312 in
Overall Length
9 in
Overall Width
69 in
All aerial lifts

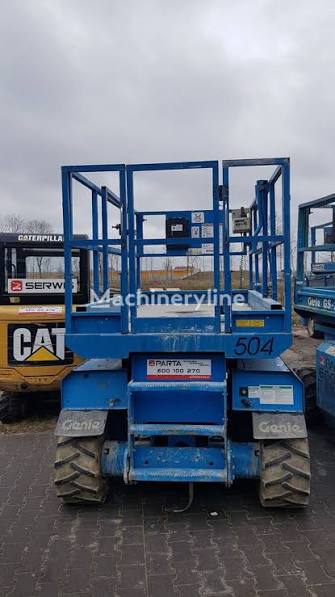

Genie GS-2668 DC Aerial Lift
1 / 5
Image 1 of 5
Image: canlift.ca

Specifications

25 data points

Engine

Engine specifications
System Voltage24 V
Number of Batteries4

Dimensions

Dimensions specifications
Ground Clearance8 in
Wheelbase73 in
Overall Length9 in
Overall Width69 in
Turning Radius145 in
Stowed Width70 in
Boom Type/Size26.00 ft (7.92 m)
Height w/ Rails93 in
Height w/o Rails67 in

Tires & Wheels

Tires & Wheels specifications
Tire Size9x21.5/23x55

Performance

Performance specifications
Operating Weight6,405 lb
Max Speed3.0 mph
Tire Size12.5x22
Hydraulic System Fluid Capacity9.6 gal
Tire Fill/TypeSolid non-marking

Platform

Platform specifications
Max Platform Height312 in
Max Platform Weight Capacity1,250 lb
Platform Inner Length99 in
Platform Inner Width61 in
Max Working Height391 in
Lift Time30.0 s
Deck Extension60 in
Lower Time35.0 s
