Genie

GS-3268 DC

Aerial Lift

Max Platform Height
384 in
Overall Length
9 in
Overall Width
69 in
All aerial lifts

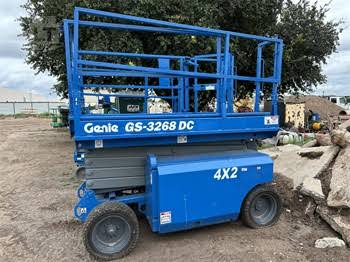

Genie GS-3268 DC Aerial Lift
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

25 data points

Engine

Engine specifications
System Voltage24 V
Number of Batteries4

Dimensions

Dimensions specifications
Ground Clearance8 in
Wheelbase73 in
Overall Length9 in
Overall Width69 in
Turning Radius145 in
Stowed Width70 in
Boom Type/Size32.00 ft (9.75 m)
Height w/ Rails97 in
Height w/o Rails73 in

Tires & Wheels

Tires & Wheels specifications
Tire Size9x21.5/23x56

Performance

Performance specifications
Operating Weight8,009 lb
Max Speed3.0 mph
Tire Size12.5x22
Hydraulic System Fluid Capacity9.6 gal
Tire Fill/TypeSolid non-marking

Platform

Platform specifications
Max Platform Height384 in
Max Platform Weight Capacity1,001 lb
Platform Inner Length99 in
Platform Inner Width61 in
Max Working Height463 in
Lift Time50.0 s
Deck Extension60 in
Lower Time37.0 s
