Genie

GS-3268 RT

Aerial Lift

Max Platform Height
384 in
Overall Length
9 in
Overall Width
69 in
All aerial lifts

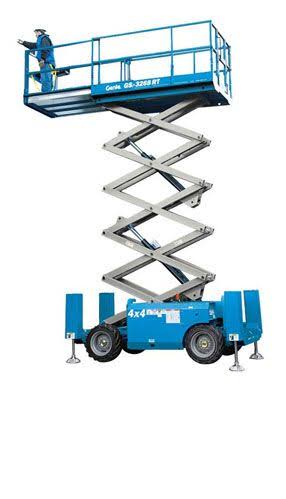

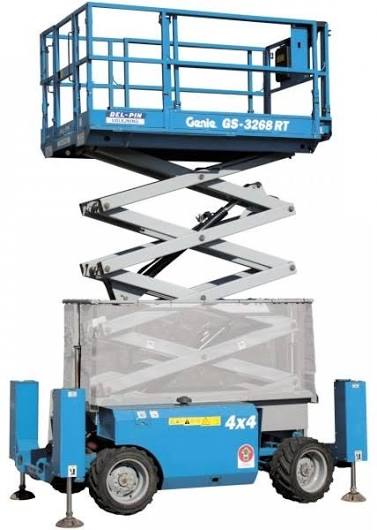

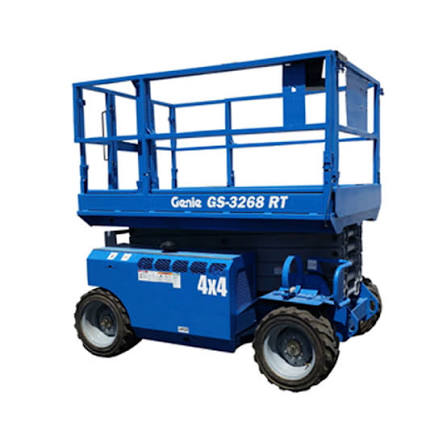

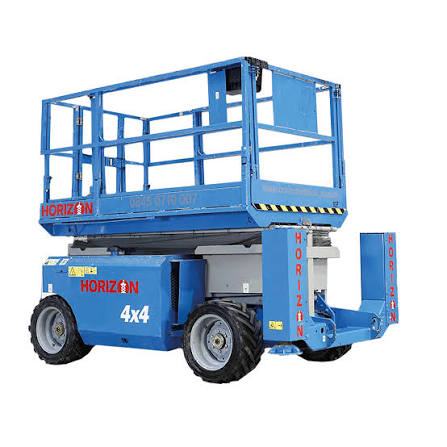

Genie GS-3268 RT Aerial Lift
1 / 5
Image 1 of 5
Image: ctrentals.ca

Specifications

24 data points

Engine

Engine specifications
Gross Power20.0 hp
Fuel TypeDiesel

Dimensions

Dimensions specifications
Ground Clearance8 in
Wheelbase69 in
Overall Length9 in
Overall Width69 in
Turning Radius145 in
Stowed Width84 in
Height w/ Rails93 in
Height w/o Rails67 in
Platform Size98 in

Tires & Wheels

Tires & Wheels specifications
Tire Size12x23.5

Performance

Performance specifications
Operating Weight8,007 lb
Max Speed3.8 mph
Tire Size12x23.5
Hydraulic System Fluid Capacity16.6 gal
Fuel Capacity15.1 gal

Capacity

Capacity specifications
Platform Capacity1,000 lb

Platform

Platform specifications
Max Platform Height384 in
Max Platform Weight Capacity1,001 lb
Platform Inner Length99 in
Platform Inner Width61 in
Max Working Height463 in
Deck Extension57 in
