Genie

GS-3390 RT

Aerial Lift

Max Platform Height
397 in
Overall Length
13 in
Overall Width
91 in
All aerial lifts

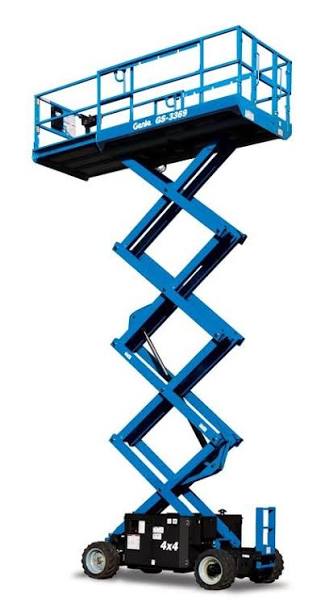

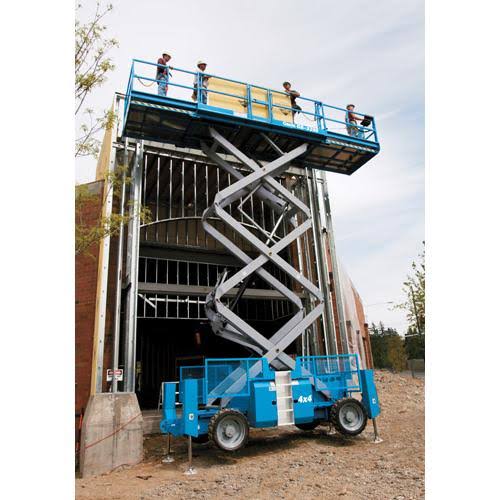

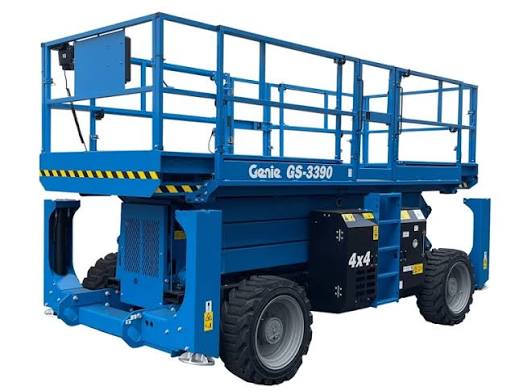

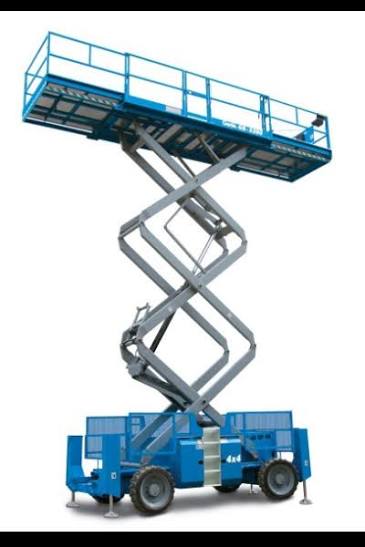

Genie GS-3390 RT Aerial Lift
1 / 5
Image 1 of 5
Image: papemh.com

Specifications

29 data points

Engine

Engine specifications
Engine ModelDSG-423
Gross Power75.0 hp
Fuel Typegas/LPG

Dimensions

Dimensions specifications
Ground Clearance14 in
Wheelbase113 in
Overall Length13 in
Overall Width91 in
Turning Radius210 in
Stowed Width91 in
Stowed Height80 in
Boom Type/Size33.00 ft (10.06 m)
Height w/ Rails107 in
Height w/o Rails80 in

Transmission

Transmission specifications
4WDyes

Tires & Wheels

Tires & Wheels specifications
Tire Size12x33/30x84

Performance

Performance specifications
Operating Weight12,092 lb
Max Speed5.0 mph
Tire Size12x33
Hydraulic System Fluid Capacity30.1 gal
Tire Fill/TypeFoam-filled rough terrain
Fuel Capacity30.1 gal

Platform

Platform specifications
Max Platform Height397 in
Max Platform Weight Capacity2,500 lb
Platform Inner Length157 in
Platform Inner Width72 in
Max Working Height475 in
Lift Time45.0 s
Deck Extension108 in
Lower Time29.0 s
