JLG

460SJ

Aerial Lift

Max Platform Height
552 in
Overall Length
29 in
Overall Width
91 in
All aerial lifts

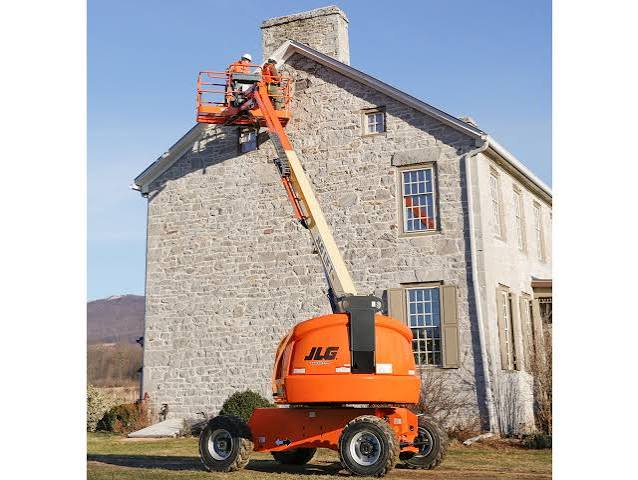

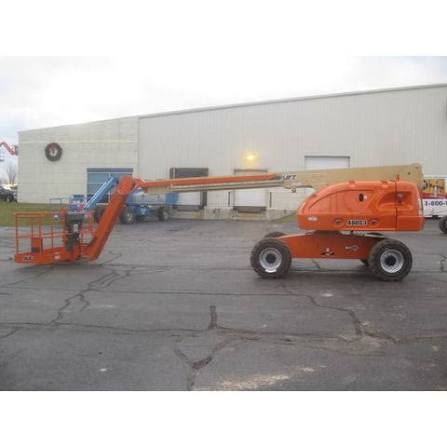

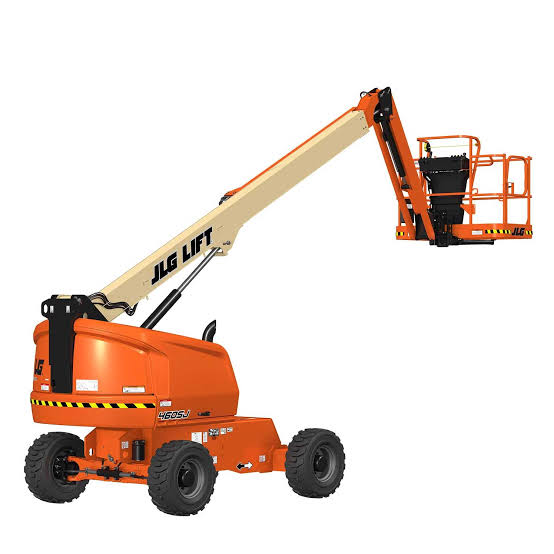

JLG 460SJ Aerial Lift
1 / 5
Image 1 of 5
Image: riwal.com

Specifications

31 data points

Engine

Engine specifications
Engine ModelF3M1011
Gross Power48.1 hp
Fuel TypeDiesel
System Voltage12 V
Maximum Ground Bearing Pressure60 psi
Diesel Engine TypeDeutz D2.9L4 Tier 4 Final
Dual Fuel Engine TypeGM Vortec 3000 MPFI
Diesel Engine Power49.0 hp
Dual Fuel Engine Power82.0 hp

Dimensions

Dimensions specifications
Ground Clearance13 in
Wheelbase93 in
Overall Length29 in
Overall Width91 in
Turning Radius198 in
Overall Height - mast lowered95 in
Platform Dimension B96 in
Platform Dimension A36 in
Tailswing Radius25 in

Performance

Performance specifications
Operating Weight15,856 lb
Max Speed4.5 mph
Tire Size12 x 16.5
Hydraulic System Fluid Capacity42.1 gal
Tire Fill/TypePneumatic Lug Tread Tires
Fuel Capacity26.1 gal

Platform

Platform specifications
Max Platform Height552 in
Max Platform Weight Capacity500 lb
Platform Inner Length96 in
Platform Inner Width36 in
Max Horizontal Reach486 in
Platform Rotation180 °
Platform Capacity - Unrestricted600 lb
