JLG
Holland Lift

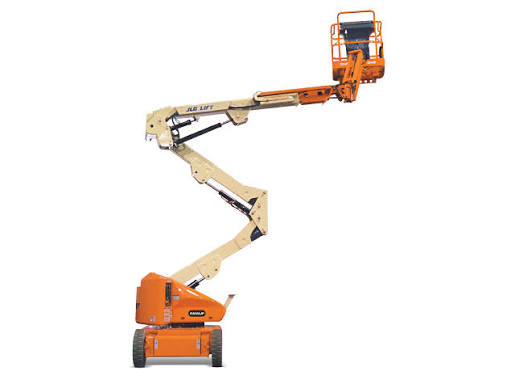

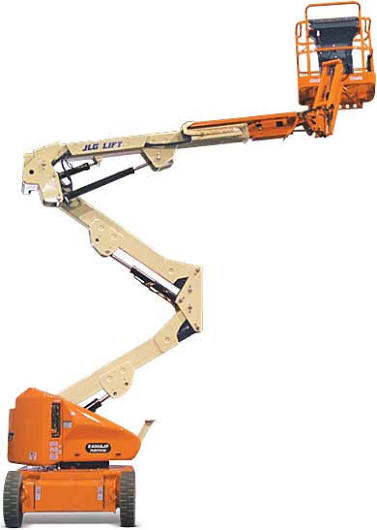

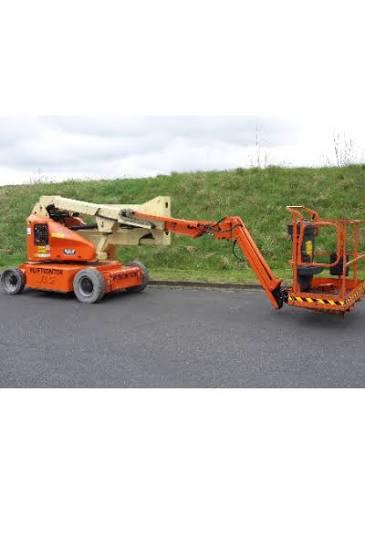

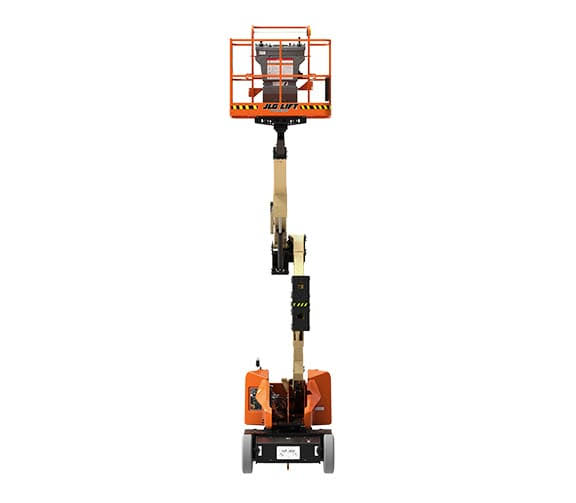

Q135EL24
Aerial Lift
19 specifications
1 / 5
Image 1 of 5
Specifications
20 data points
Dimensions
| Ground Clearance | 5 in |
|---|---|
| Wheelbase | 80 in |
| Overall Width | 50 in |
| Tire Size | 22 x 6 x 17.75 Non-marking (F) 25 x 7 x 12 Non-marking (R) |
| Overall Height | 79 in |
| Platform Dimension A | 31 in |
| Platform Dimension B | 48 in |
| Tailswing Radius | 48 in |
| Up and Over Height | 259 in |
Electrical System
| Batteries | 8 x 6V 370 amp-hr |
|---|
Performance
| Operating Weight | 13,100 lb |
|---|---|
| Hydraulic System Fluid Capacity | 4.0 gal |
| Gradeability | 30.0 % |
| Drive Speed | 3.0 mph |
| Platform Capacity | 500 lb |
| Swing | 360 ° |
| Swing Type | Non-Continuous |
| Turning Radius - Outside (axles retracted) | 125 in |
Platform
| Max Platform Height | 480 in |
|---|---|
| Max Horizontal Reach | 254 in |
