Genie
Holland Lift
Q135EL24
Aerial Lift
19 specifications
1 / 5

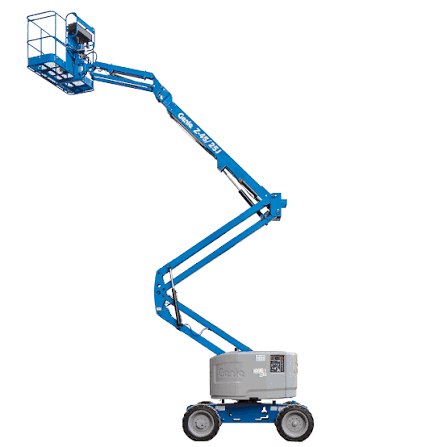

Image 1 of 5
Specifications
20 data points
Engine
| Engine Model | DSG-423 |
|---|---|
| Gross Power | 75.0 hp |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Wheelbase | 80 in |
| Overall Length | 18 in |
| Overall Width | 91 in |
| Turning Radius | 178 in |
| Overall Height - mast lowered | 84 in |
Performance
| Operating Weight | 14,299 lb |
|---|---|
| Max Speed | 5.0 mph |
| Tire Size | 355/55 D625 |
| Hydraulic System Fluid Capacity | 24.0 gal |
| Fuel Capacity | 17.1 gal |
Platform
| Max Platform Height | 554 in |
|---|---|
| Max Platform Weight Capacity | 500 lb |
| Platform Inner Length | 72 in |
| Platform Inner Width | 30 in |
| Max Working Height | 633 in |
| Max Horizontal Reach | 301 in |
| Platform Rotation | 180 ° |
