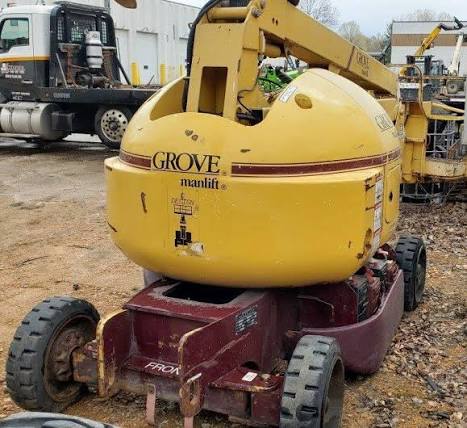

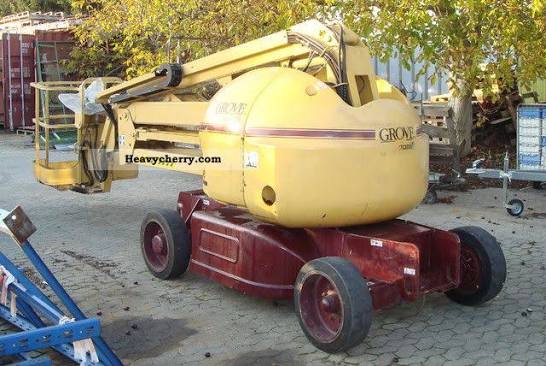

Grove
Holland Lift
Q135EL24
Aerial Lift
19 specifications
1 / 5
Image 1 of 5
Specifications
20 data points
Engine
| System Voltage | 48 V |
|---|---|
| Battery Amp Hours | 370 |
| Number of Batteries | 2 |
| Charger Amps | 21 |
Dimensions
| Ground Clearance | 6 in |
|---|---|
| Wheelbase | 77 in |
| Overall Length | 19 in |
| Overall Width | 60 in |
| Overall Height - mast lowered | 79 in |
Performance
| Operating Weight | 13,100 lb |
|---|---|
| Max Speed | 3.0 mph |
| Tire Size | 7x15 NHS 12PR |
| Hydraulic System Fluid Capacity | 5.0 gal |
| Tire Fill/Type | Air |
Platform
| Max Platform Height | 483 in |
|---|---|
| Max Platform Weight Capacity | 227 lb |
| Platform Inner Length | 48 in |
| Platform Inner Width | 30 in |
| Max Working Height | 556 in |
| Max Horizontal Reach | 264 in |
