Grove

RT400

Rough Terrain Crane

Operating Weight
32,100 lb
Max Lift Capacity
44,000 lb
Max Speed - Forward
26.0 mph
Gross Power
104.6 hp
All rough terrain cranes

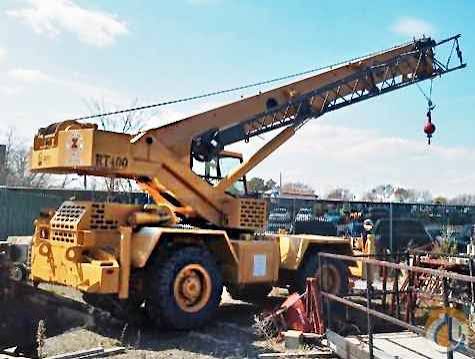

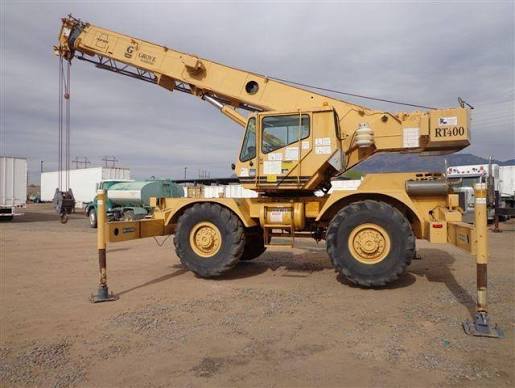

Grove RT400 Rough Terrain Crane
1 / 5
Image 1 of 5
Image: manitowoc.com

Specifications

35 data points

Operating Specifications

Operating Specifications specifications
Operating Weight32,100 lb
Fuel Capacity40.0 gal
Tire Size16.00x24-16PR
Operating Voltage12 V
Hydraulic System Fluid Capacity66.0 gal

Engine

Engine specifications
Engine Model4BT3.9L
Displacement238 in³
Power Measured @2,800 rpm
Gross Power104.6 hp
Number of Cylinders6
AspirationTurbocharged
Torque Measured @1,700 rpm
Max Torque260 lb-ft

Weights

Weights specifications
Counterweight3,925 lb

Hydraulic System

Hydraulic System specifications
Max operating pressure3,500 psi

Dimensions

Dimensions specifications
Ground Clearance18 in
Wheelbase10 in
Transport Width217 in
Transport Height126 in
Transport Length394 in
Turning Radius194 in
Width w/ Outriggers Extended239 in
Upper Structure Tail Swing Radius134 in
Carrier/Base Length250 in

Transmission

Transmission specifications
Max Speed - Forward26.0 mph
Number of Forward Gears6
Number of Reverse Gears6
Transmission TypeFull powershift

Boom

Boom specifications
Max Lift Capacity44,000 lb
Max Height @ Max Raise Angle - no jib936 in
Max Elevating Angle78 °
Number of Sections3
Swing Speed2 rpm
Min Operating Radius96 in
Max Operating Radius780 in
