Hamm

GRW 18

Pneumatic Roller

Gross Power
114.0 hp
Overall Length
187 in
Overall Width
85 in
All pneumatic rollers

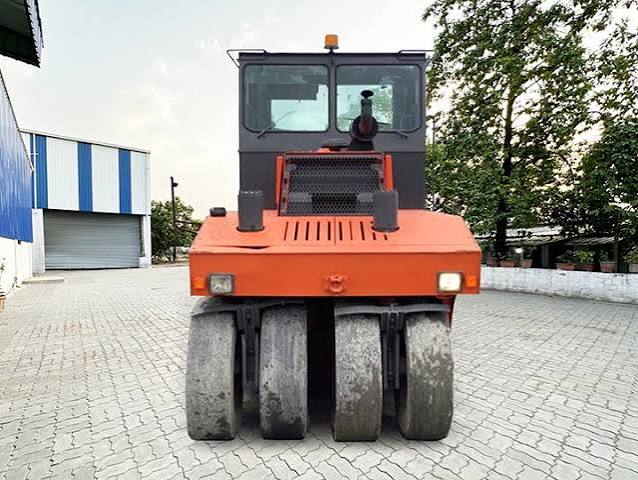

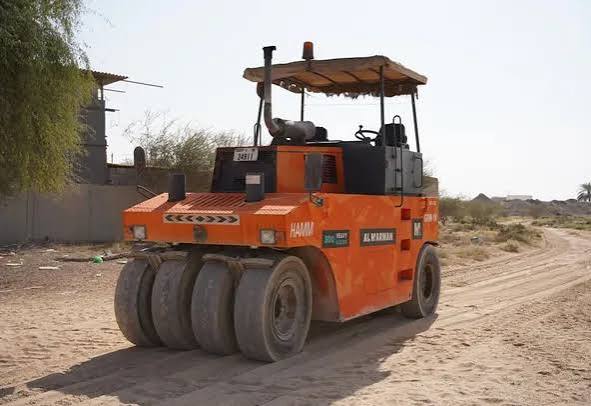

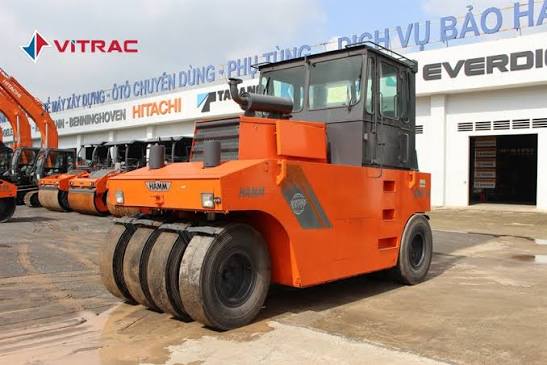

Hamm GRW 18 Pneumatic Roller
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Operating Weight61,729 lb
Operating weight Cabin33,169 lb
Fuel Capacity52.4 gal
Water Spray Tank Fluid Capacity198.2 gal
Operating Width78 in

Engine

Engine specifications
Engine ModelTCD 2012 L04 2V
Power Measured @2,300 rpm
Gross Power114.0 hp
Net Power114.0 hp
Number of Cylinders4
Engine MakeDEUTZ
MakeDeutz
Emissions CertificationEPA Tier 4

Dimensions

Dimensions specifications
Ground Clearance13 in
Wheelbase142 in
Overall Length187 in
Overall Width85 in
Height - Top of ROPS/FOPS130 in
Maximum width78,190 in

Tires & Wheels

Tires & Wheels specifications
Number of Tires - Rear4
Number of Tires - Front4
Width over tyres, rear69 in
Size of tyres, rear11.00-R20
Size of tyres, Front11.00-R20
Width over tyres, Front69 in

Drum

Drum specifications
Drum Width78 in
