Haulotte
Mec
2591ES

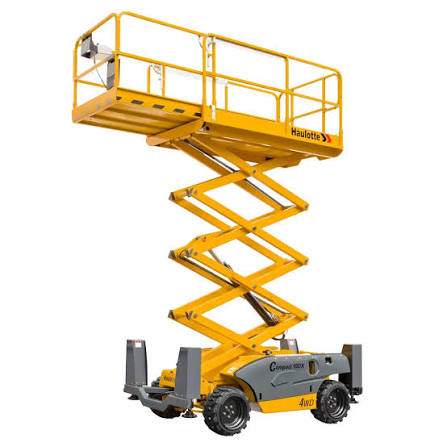

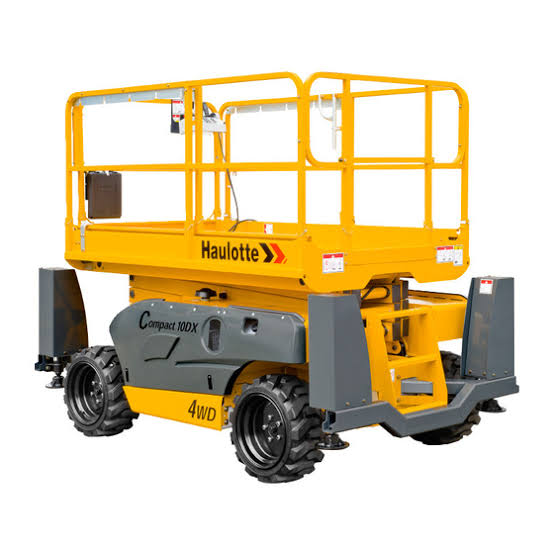

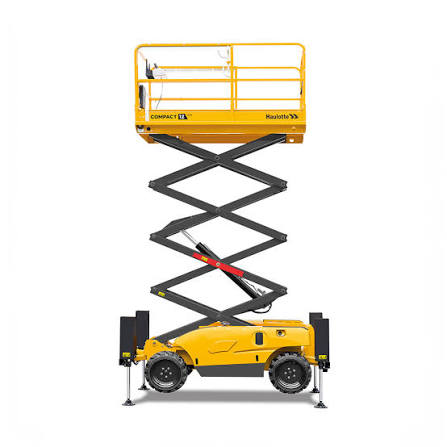

Aerial Lift
22 specifications
1 / 5
Image 1 of 5
Specifications
23 data points
Engine
| Gross Power | 32.9 hp |
|---|---|
| Fuel Type | diesel |
Dimensions
| Ground Clearance | 10 in |
|---|---|
| Wheelbase | 74 in |
| Overall Length | 9 in |
| Overall Width | 72 in |
| Turning Radius | 148 in |
| Height w/ Rails | 94 in |
| Height w/o Rails | 60 in |
Performance
| Operating Weight | 7,341 lb |
|---|---|
| Max Speed | 3.5 mph |
| Tire Size | 26x12-12 |
| Hydraulic System Fluid Capacity | 21.2 gal |
| Tire Fill/Type | foam filled |
| Fuel Capacity | 8.0 gal |
Platform
| Max Platform Height | 324 in |
|---|---|
| Max Platform Weight Capacity | 1,246 lb |
| Platform Inner Length | 99 in |
| Platform Inner Width | 61 in |
| Max Working Height | 402 in |
| Lift Time | 35.0 s |
| Deck Extension | 47 in |
| Lower Time | 40.0 s |
