Hesston

4790

Baler

Bale Width
48 in
Overall Width
106 in
Overall Width
118 in
Overall Height
141 in
All balers

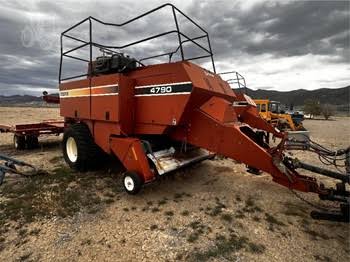

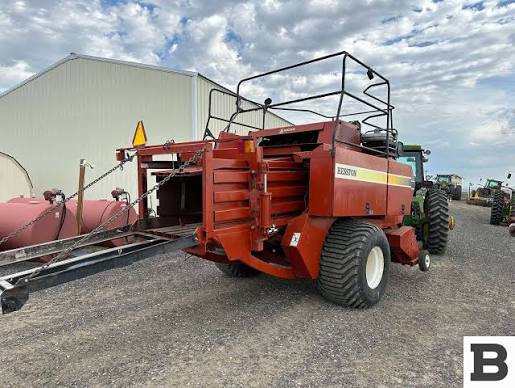

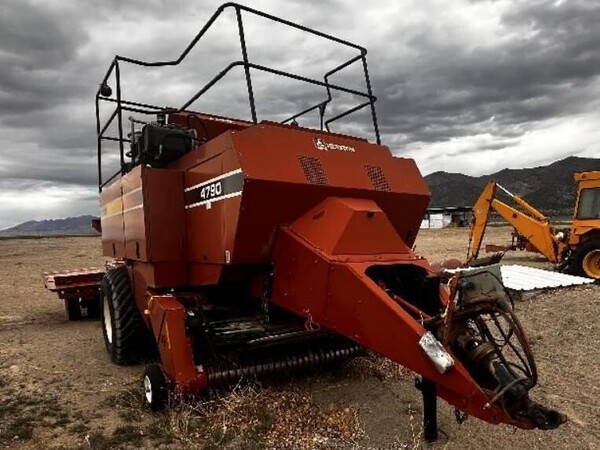

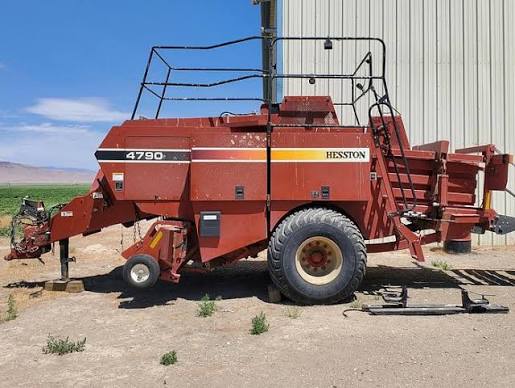

Hesston 4790 Baler
1 / 5
Image 1 of 5
Image: machinerypete.com

Specifications

20 data points

Dimensions

Dimensions specifications
Overall Length285 in
Overall Width118 in
Overall Height141 in
Weight17,593 lb
Tractor PTO Power Required130.0 hp

Bale Size

Bale Size specifications
Bale Width48 in
Bale Length - max100 in
Bale Height35 in

Baler Pickup

Baler Pickup specifications
Overall Width106 in
Number of Bars4
Tine to Tine Width81 in
Number of Tines120
Lift TypeHydraulic Cylinder

Feeding Chamber

Feeding Chamber specifications
Packer TypeFork Type w/6 Hard Surfaced Tines
Stuffer TypeFork Type

Plunger

Plunger specifications
SPM43
Stroke Length28 in
Bearing TypeTapered Roller sealed ball bearing rollers sealed

Wrapping System

Wrapping System specifications
Twine Ball Capacity30
Twine Type6 Double Knot Type
