Hitachi
Volvo
A35G
Off-Highway Truck
56 specifications
1 / 5

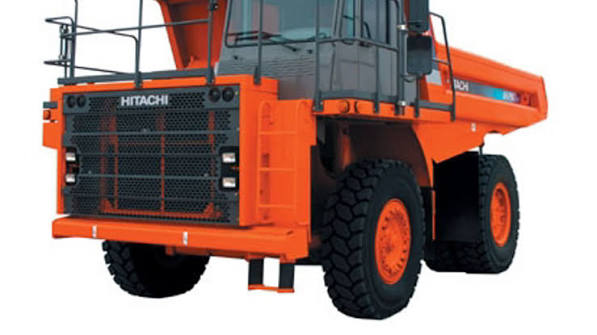

Image 1 of 5
Specifications
43 data points
Operating Specifications
| Fuel Capacity | 185.0 gal |
|---|---|
| Tire Size | 24.00R35 |
| Engine Oil Capacity | 22.1 gal |
| Cooling System Fluid Capacity | 59.4 gal |
| Operating Voltage | 24 V |
| Steering System Fluid Capacity | 29.6 gal |
| Diff and Final Drive Fluid Capacity | 27.3 gal |
| Brake/Hoist System Fluid Capacity | 67.7 gal |
Engine
| Engine Model | MTU 12 V-2000 |
|---|---|
| Displacement | 1,459 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 760.0 hp |
| Net Power | 698.0 hp |
| Number of Cylinders | 12 |
| Max Torque | 2,280 lb-ft |
| Make | Detroit Diesel |
Weights
| Operating Weight | 230,379 lb |
|---|---|
| Empty Weight | 101,000 lb |
| Loaded Weight | 244,001 lb |
| Weight Distribution Front - loaded | 34.0 % |
| Weight Distribution Rear - loaded | 66.0 % |
| Weight Distribution Front - empty | 50.0 % |
| Weight Distribution Rear - empty | 50.0 % |
Dimensions
| Ground Clearance | 25 in |
|---|---|
| Wheelbase | 170 in |
| Overall Length | 373 in |
| Overall Width | 197 in |
| Overall Height | 182 in |
| Dump Height | 350 in |
| Dump Ground Clearance | 30 in |
Transmission
| Max Speed | 36.0 mph |
|---|---|
| Transmission Type | Allison H6610A. Fully automatic planetary type with integral lock up converter |
| Number of Gears - Forward | 6 |
| Number of Gears - Reverse | 2 |
Drive System
| Drive Config | RWD |
|---|
Service Refill Capacities
| Brake/Hoist Hydraulic Tank | 143,984.3 gal |
|---|
Articulating/Rigid
| Articulating/Rigid | Rigid |
|---|
Dump
| Dump Angle | 60 ° |
|---|---|
| Raise Time | 12.0 s |
| Lower Time | 16.0 s |
| Load Capacity - heaped | 50.70 yd³ |
| Load Capacity - Struck | 36.90 yd³ |
Approximate Weights - Flat Floor
| Body | 1,350 lb |
|---|
