Hitachi

EH4500-2

Off-Highway Truck

Operating Weight
1,059,000 lb
Max Speed
41.6 mph
Gross Power
2,700.0 hp
Net Power
2,600.0 hp
All off-highway trucks

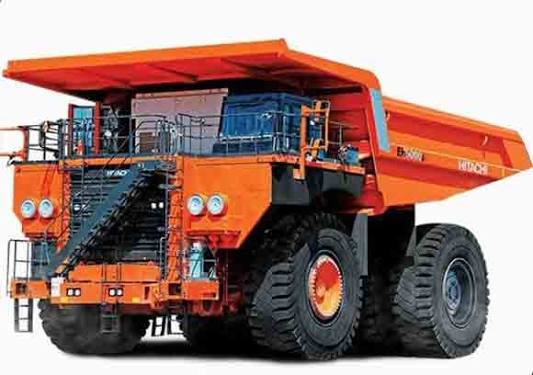

Hitachi EH4500-2 Off-Highway Truck
1 / 5
Image 1 of 5
Image: tradetrucks.com.au

Specifications

42 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity999.8 gal
Tire Size50.90R57 E4 Radial
Engine Oil Capacity64.0 gal
Cooling System Fluid Capacity184.2 gal
Hydraulic System Fluid Capacity331.9 gal
Operating Voltage24 V
Alternator Supplied Amperage260 A
Steering System Fluid Capacity76.9 gal
Diff and Final Drive Fluid Capacity59.0 gal
Brake/Hoist System Fluid Capacity255.0 gal

Engine

Engine specifications
Engine ModelDDEC IV 16V-4000
Displacement3,967 in³
Power Measured @1,900 rpm
Gross Power2,700.0 hp
Net Power2,600.0 hp
Number of Cylinders16
Torque Measured @—
MakeDetroit Diesel
Rated Engine Speed332 rpm

Weights

Weights specifications
Operating Weight1,059,000 lb
Empty Weight436,727 lb
Loaded Weight1,059,017 lb
Weight Distribution Front - loaded34.0 %
Weight Distribution Rear - loaded67.0 %
Weight Distribution Front - empty50.2 %
Weight Distribution Rear - empty49.8 %

Dimensions

Dimensions specifications
Ground Clearance39 in
Wheelbase243 in
Overall Length564 in
Overall Width356 in
Overall Height285 in
Dump Height564 in
Dump Ground Clearance78 in

Transmission

Transmission specifications
Max Speed41.6 mph

Drive System

Drive System specifications
Drive Config4x2

Service Refill Capacities

Service Refill Capacities specifications
Brake/Hoist Hydraulic Tank619,932.4 gal

Articulating/Rigid

Articulating/Rigid specifications
Articulating/RigidRigid

Dump

Dump specifications
Dump Angle58 °
Raise Time22.0 s
Lower Time24.0 s
Load Capacity - heaped207.99 yd³
Load Capacity - Struck141.99 yd³
