Hitachi

EH5000

Off-Highway Truck

Operating Weight
1,164,500 lb
Max Speed
41.6 mph
Gross Power
2,700.0 hp
Net Power
2,600.0 hp
All off-highway trucks

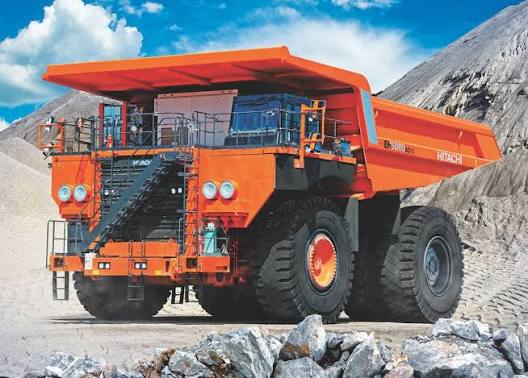

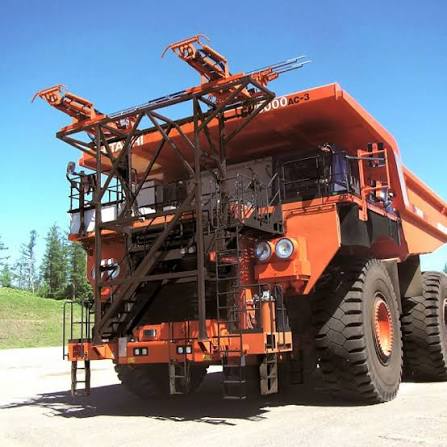

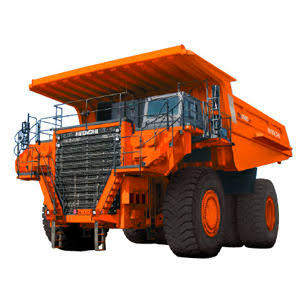

Hitachi EH5000 Off-Highway Truck
1 / 5
Image 1 of 5
Image: hitachicm.com

Specifications

42 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity999.9 gal
Tire Size53/80R63 E4 Radial
Engine Oil Capacity64.0 gal
Cooling System Fluid Capacity184.0 gal
Hydraulic System Fluid Capacity332.0 gal
Operating Voltage24 V
Alternator Supplied Amperage260 A
Steering System Fluid Capacity77.0 gal
Brake/Hoist System Fluid Capacity255.0 gal

Engine

Engine specifications
Engine ModelDDEC IV 16V-4000
Displacement3,967 in³
Power Measured @1,900 rpm
Gross Power2,700.0 hp
Net Power2,600.0 hp
Number of Cylinders16
Max Torque8,062 lb-ft
MakeDetroit Diesel
Rated Engine Speed332 rpm

Weights

Weights specifications
Operating Weight1,164,500 lb
Empty Weight469,991 lb
Loaded Weight1,164,500 lb
Weight Distribution Front - loaded32.0 %
Weight Distribution Rear - loaded68.0 %
Weight Distribution Front - empty51.0 %
Weight Distribution Rear - empty51.0 %

Dimensions

Dimensions specifications
Ground Clearance36 in
Wheelbase243 in
Overall Length569 in
Overall Width356 in
Overall Height283 in
Dump Height563 in
Dump Ground Clearance74 in

Transmission

Transmission specifications
Max Speed41.6 mph

Drive System

Drive System specifications
Drive Config4x2

Service Refill Capacities

Service Refill Capacities specifications
Brake/Hoist Hydraulic Tank629,931.4 gal

Articulating/Rigid

Articulating/Rigid specifications
Articulating/RigidRigid

Dump

Dump specifications
Dump Angle58 °
Raise Time22.0 s
Lower Time24.0 s
Load Capacity - heaped256.49 yd³
Load Capacity - Struck187.80 yd³

Approximate Weights - Flat Floor

Approximate Weights - Flat Floor specifications
Body1,500 lb
