Hitachi

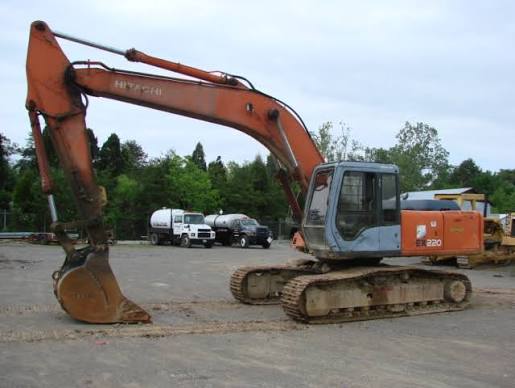

EX220-5
- Operating Weight
- 49,600 lb
- Max Digging Depth
- 248 in
- Max Digging Depth
- 275 in
- Net Power
- 156.0 hp
1 / 5
Image 1 of 5
Specifications
54 data points
Operating Specifications
| Operating Weight | 49,600 lb |
|---|---|
| Fuel Capacity | 100.4 gal |
| Hydraulic Pump Flow Capacity | 107.8 gal/min |
| Hydraulic System Fluid Capacity | 63.2 gal |
| Hydraulic System Relief Valve Pressure | 4,980 psi |
| Engine Oil Capacity | 6.9 gal |
| Cooling System Fluid Capacity | 6.1 gal |
| Swing Drive Fluid Capacity | 3.5 gal |
| Alternator Supplied Amperage | 40 A |
Engine
| Engine Model | H07C-TD |
|---|---|
| Displacement | 411 in³ |
| Power Measured @ | 2,000 rpm |
| Net Power | 156.0 hp |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,600 rpm |
| Max Torque | 456 lb-ft |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 117 in |
| Length of Track on Ground | 137 in |
| Tail Swing Radius | 117 in |
| Width to Outside of Tracks | 119 in |
| Removal Counterweight Clearance | 43 in |
Undercarriage
| Ground Pressure | 7 psi |
|---|---|
| Track Gauge | 95 in |
| Number of Track Rollers per Side | 8 |
| Max Travel Speed | 3.5 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 47 |
| Number of Carrier Rollers per Side | 2 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 248 in |
|---|---|
| Max Reach Along Ground | 376 in |
| Max Loading Height | 258 in |
| Max Vertical Wall Digging Depth | 214 in |
| Max Cutting Height | 371 in |
| Shipping Length of Unit | 404 in |
| Shipping Height of Unit | 130 in |
Bucket
| Reference Bucket Capacity | 1.40 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.90 yd³ |
| Minimum Bucket Capacity | 1.10 yd³ |
Swing Mechanism
| Swing Speed | 14 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 275 in |
|---|---|
| Max Vertical Wall Digging Depth | 238 in |
| Max Cutting Height | 379 in |
| Max Loading Height | 267 in |
| Max Reach Along Ground | 398 in |
| Shipping Length of Unit | 400 in |
| Shipping Height of Unit | 122 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 300 in |
|---|---|
| Max Cutting Height | 394 in |
| Max Loading Height | 280 in |
| Max Vertical Wall Digging Depth | 267 in |
| Max Reach Along Ground | 424 in |
| Shipping Length of Unit | 402 in |
| Shipping Height of Unit | 131 in |
