Sany

SY135

Excavator

Operating Weight
29,763 lb
Max Digging Depth
217 in
Net Power
92.6 hp
All excavators

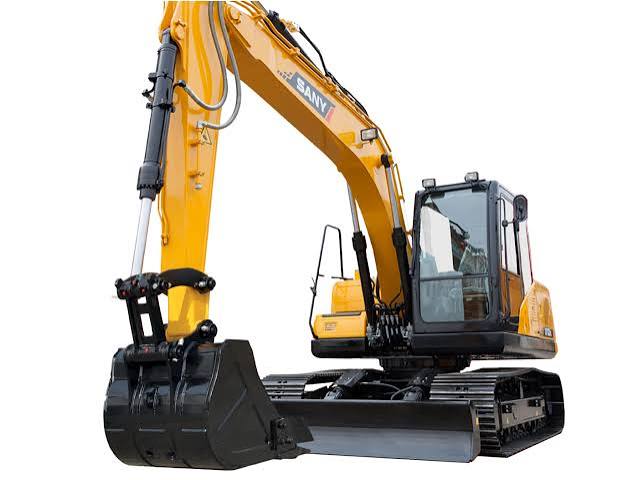

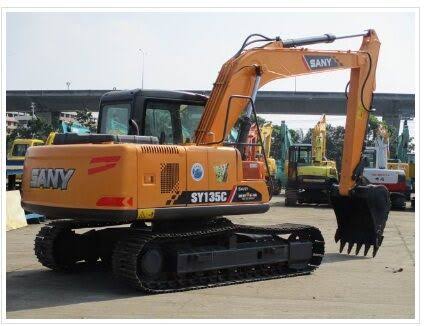

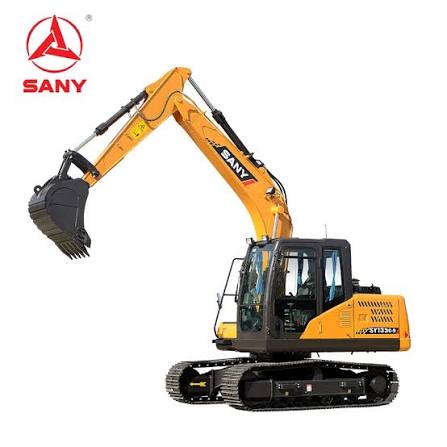

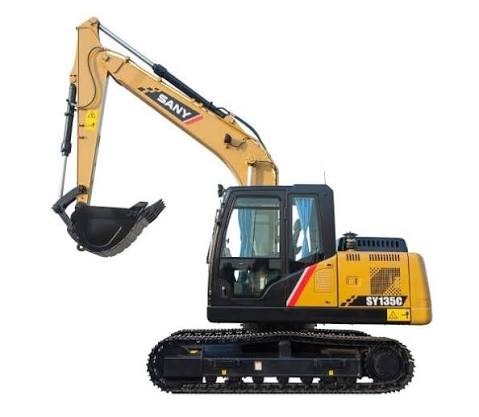

Sany SY135 Excavator
1 / 5
Image 1 of 5
Image: sanyglobal.com

Specifications

19 data points

Operating Specifications

Operating Specifications specifications
Operating Weight29,763 lb
Hydraulic Pump Flow Capacity64.0 gal/min

Engine

Engine specifications
Engine ModelBB-4BG1TRP
Displacement263 in³
Power Measured @2,200 rpm
Net Power92.6 hp

Dimensions

Dimensions specifications
Ground Clearance17 in
Length of Track on Ground114 in
Tail Swing Radius100 in
Width to Outside of Tracks101 in

Undercarriage

Undercarriage specifications
Max Travel Speed3.5 mph
Shoe Size20 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth217 in
Max Reach Along Ground328 in
Max Loading Height244 in
Max Vertical Wall Digging Depth192 in
Shipping Length of Unit304 in
Shipping Height of Unit111 in

Bucket

Bucket specifications
Reference Bucket Capacity0.71 yd³
