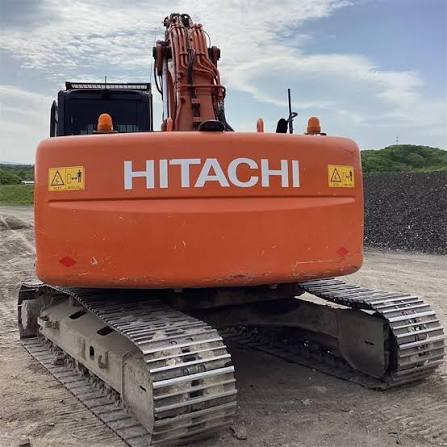

Hitachi
John Deere
120C
Excavator
51 specifications
1 / 5
Image 1 of 5
Specifications
30 data points
Operating Specifications
| Operating Weight | 47,800 lb |
|---|---|
| Fuel Capacity | 60.8 gal |
| Hydraulic System Fluid Capacity | 35.7 gal |
| Hydraulic System Relief Valve Pressure | 4,980 psi |
| Engine Oil Capacity | 6.7 gal |
Engine
| Engine Model | A-6BG1T |
|---|---|
| Power Measured @ | 1,950 rpm |
| Net Power | 98.0 hp |
| Aspiration | Turbocharged |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 117 in |
| Length of Track on Ground | 133 in |
| Tail Swing Radius | 79 in |
| Width to Outside of Tracks | 110 in |
| Removal Counterweight Clearance | 41 in |
Undercarriage
| Ground Pressure | 7 psi |
|---|---|
| Track Gauge | 88 in |
| Max Travel Speed | 3.3 mph |
| Shoe Size | 24 in |
Boom/Stick Excavator Option 1
| Max Digging Depth | 263 in |
|---|---|
| Max Reach Along Ground | 391 in |
| Max Loading Height | 268 in |
| Max Vertical Wall Digging Depth | 239 in |
| Max Cutting Height | 378 in |
| Shipping Length of Unit | 349 in |
| Shipping Height of Unit | 118 in |
Bucket
| Reference Bucket Capacity | 1.10 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.50 yd³ |
| Minimum Bucket Capacity | 0.71 yd³ |
Swing Mechanism
| Swing Speed | 14 rpm |
|---|
